Barcol Impressor digunakan untuk mengukur kekerasan permukaan material.

Biasa digunakan untuk mengukur kekerasan material seperti logam, plastik, karet, dll. Menggunakan skala Barcol untuk mengukur kekerasan.

Skala Barcol dari 0 hingga 100 untuk mengukur kekerasan permukaan material.

Ideal untuk berbagai aplikasi, termasuk pengujian kekerasan permukaan, pengujian ketahanan korosi, pengujian ketahanan abrasi, dan pengujian ketahanan panas.

Dapat juga digunakan untuk mengukur ketebalan lapisan pelapis, ketebalan lapisan korosi, dan ketebalan lapisan abrasi.

====

* A digital indentation hardness tester

* It is characterized in that provided with a balance positioning, a digital display of hardness value, and a non disassembly calibration and adjusting.

* It is with good stability, convenient calibration, and high accuracy of detection.

* Small in size, portable. Single hand operation, easy to use. Can be used in any occasion as long as the hand can reach.

* Wide test range, can test from very soft pure aluminum to a particularly hard aluminum alloy. effective test range equivalent to the Brinell Hardness of 25~150HB.

* No need to be supported. Just test on one side of the sample with the hardness tester, no need to be supported. It is suitable for the test of large and extra thick workpiece.

* With the maximum hold function, recording the maximum hardness value during measurements.

* Can be used for measuring Barcol Hardness, other hardness value can be calculated out by the experimental curve. Such as Brinell Hardness (HB), Vickers Hardness (HV), Webster Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH).

* Provide Bluetooth data output choice.

It is mainly used in aluminum processing industry. Also, it can be used for glass steel industry.

Applications: The Digital Display Barcol Hardness Tester HM-934-1+ is the Hand-held portable Indentation hardness tester, which is the latest research and development of our company. Used for measuring the hardness of: *aluminum, aluminum alloys, soft metals *fiberglass and other materials. Follow the standards: ASTM B648-00;ASTM HD2583-07;GB/T3854-2005.

Model :MH-934-1+

Range :0~100Hba, Amount to 25~135HBW

Resolution:0.1HBa

Indication Error :81~88HBa ±1HBa

42~48HBa ±2Hba

Repeatability Error:81~88HBa ±1.5HBa

42~48HBa ±2.5HBa

Brinell Hardness √

Vickers Hardness √

Webster Hardness √

Rockwell hardness √

Maximum Hold √

Average Calculation √

Operating Condition : Temperature: 0~50°C

Humidity: <80%RH

Power Supply :2 x 1.5 V AAA (UM-4) Battery

Weight:390g (Not Including Batteries)

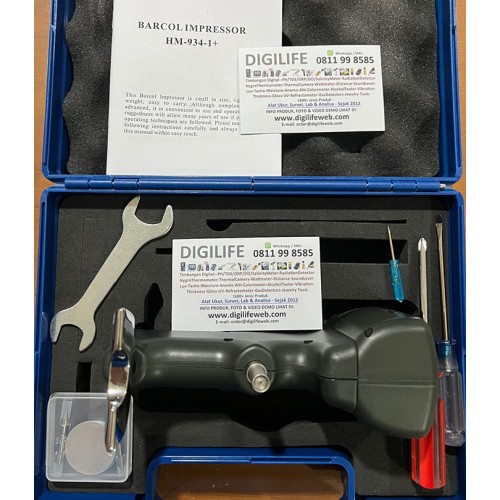

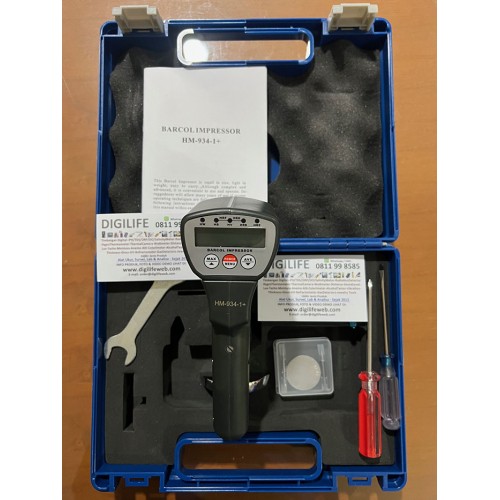

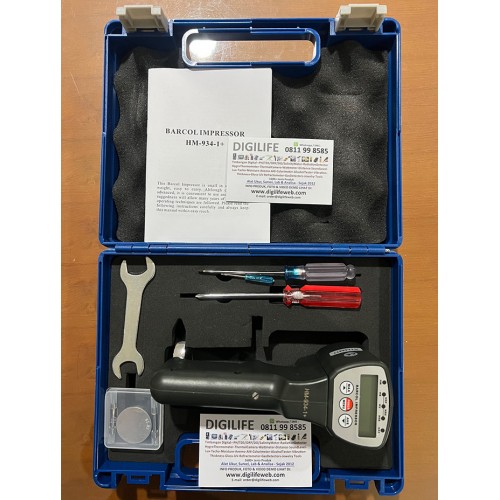

Standard Accessories :

1. Main Unit

2. 2 Pins

3. 2 Standard Blocks

4. Pin Length Calibration Block

5. Screw Driver

6. Spanner

7. Carrying Case

8. Operation Manual
