Portable Milliohmmeter dari ETCR Electronics

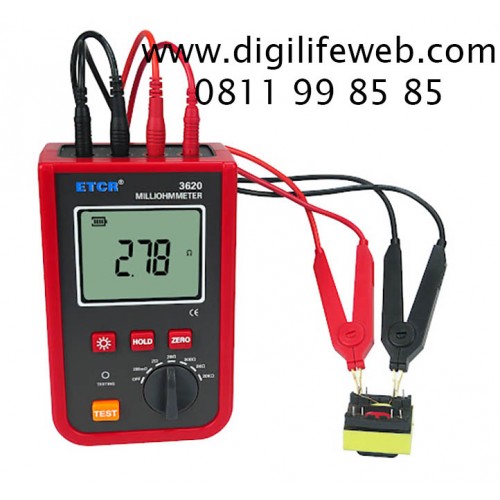

ETCR3620 Portable Milliohmmeter(DC Low Value Resistance Tester) apply to measure the wire resistance of cables, the contact resistance of switches, connectors and relays, the DC resistance of coils, motors and transformers windings, and the connection resistance of the connecting conductor between the metal riveting, the metal components, the ground grid and the ground pole, etc.

Technical Specification

Power Supply

DC 7.4V 2000mAH rechargeable lithium battery

Range

1mΩ~20.0kΩ

Detection Mode

Precision 4-wire method, AC/DC 2 channel simultaneous detection

Data Storage

200 groups (power down or replace the battery will not lose the data)

Test Wire

2 sets: Red/Black each 1 set, length 0.8m

Backlight Function

Yes, suitable to the dim place

Inspection Function

Yes

Display Mode

Display area: 58.5mm×46mm

Low Voltage Indicator

When battery voltage is lower than 6.5V±0.3V, remind to replace the battery in time

Host Size

159mm×100mm×66mm

Weight

Meter: about 460g; Total weight: about 640g( include accessories)

Working Temperature

-10oC~40oC, below 80%rh

Store Temperature

-10oC~60oC, below 70%rh

Withstand Voltage

AC 3700V/rms(between housing and screws)

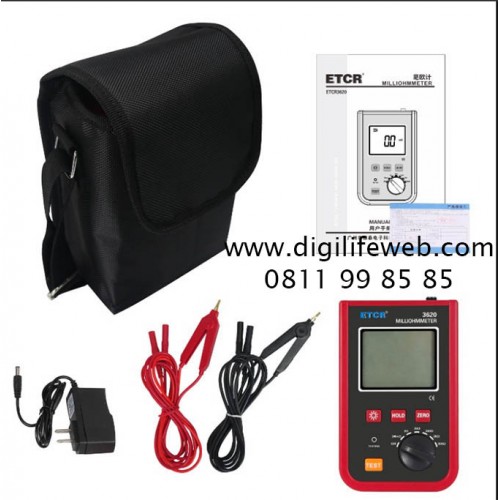

Accessories

Meter: 1PCS; Test wires: 1 set; Cloth Bag: 1PCS; Charger :1PCS

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

Captcha

Please complete the captcha validation below

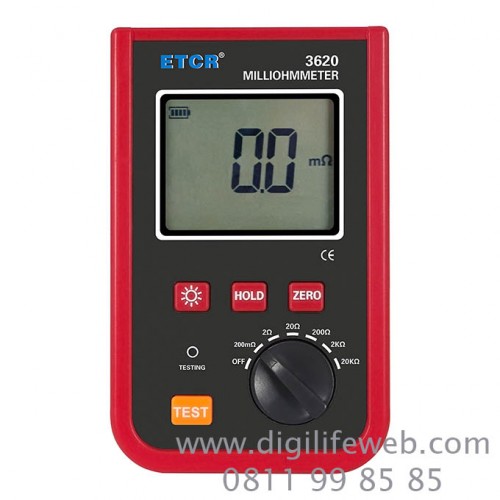

Portable Milliohmmeter ETCR3620

Product Code: ETCR3620
Availability: In Stock

Rp2,500,000
Ex Tax: Rp2,500,000

Qty

0 reviews / Write a review
