Manufacturer Specification:

Laser Level (Automatic leveling in the range of 3 degrees)

Automatic self leveling mechanism. Audio warning when beyond auto leveling range.

Adjust feet

360 rotating base with fine tuning knob

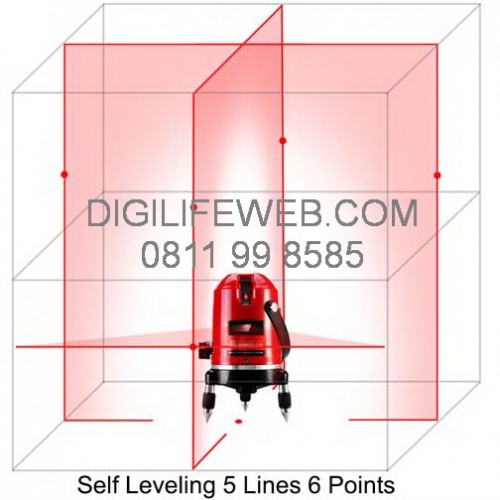

5 laser lines (4 vertical and 1 horizontal),6 points

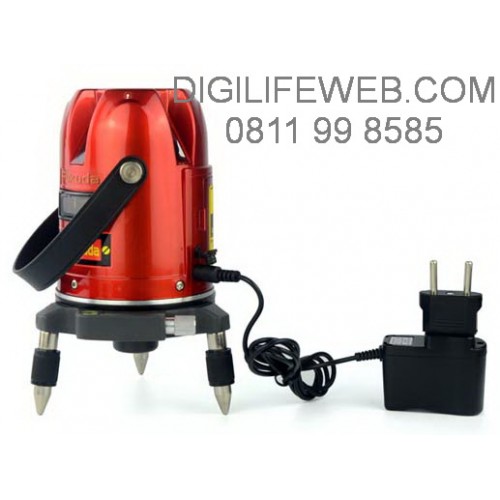

Power:AC 110-240v / 3 x 1.5V AA Dry Battery,

Laser power< 5mW (Class IIIA)

Wavelength: 635nm

Vertical and Horizontal Precision: 1mm /8m

Line width< 2mm / 5 meters

Launch angle> 120 degree

Cartesian precision: 1mm /3m

Working distance:. Indoor working radius of about 15m , outdoor 10m (without Receiver).

When using an outdoor receiver operating radius about 70m.

Continuous working time: about 20 hours by Battery, or long time by AV Power

Working temperature: -10 Degree C - 45 degree C

How to use:

1. Set the instrument on the tripod or a stable surface, adjust the instrument.

2. If the instrument is too tilted, out of range (3 degrees), the laser tube will automatically turn off (or alarm will chirp)

3. Switch knob clockwise to open the instrument, the instrument top green indicator light, while emitting a laser beam

4. Turn the instrument, the laser beam toward goals

5. Gently adjust knob, find work orientation

6. When work is over, turn the switch knob counterclockwise, turn off the instrument

7. With light point designed outdoor environments, provide convenience for the construction

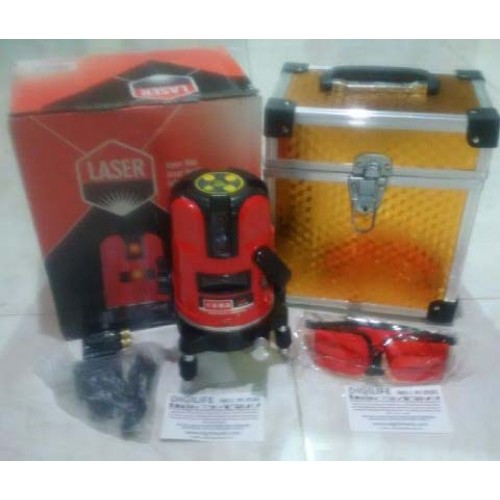

Package include

1 x 5 lines laser level unit

1 x protective case

1 x Power supply

1 x protective glasses

1 x Instructions

1 x Belt

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

Laser Line 5 Lines

Product Code: 5LINES
Availability: In Stock

Rp700,000
Ex Tax: Rp700,000
