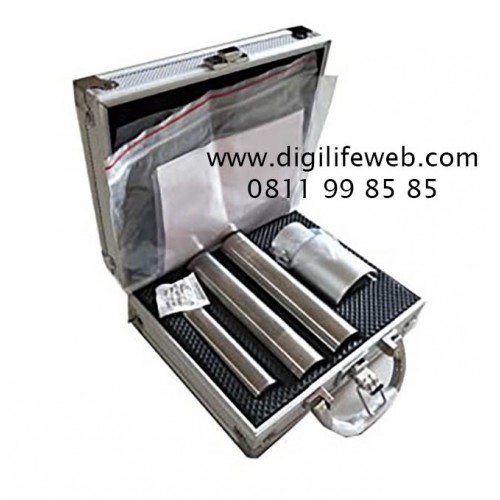

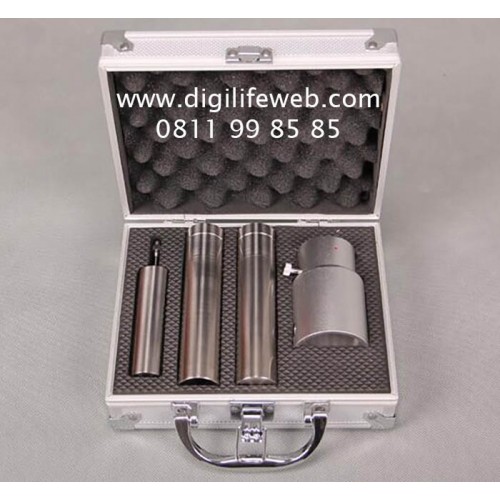

Rotor 0 untuk Viscometer

Viscometer adapter0 rotor
Apply to NDJ-9S NDJ-8S NDJ-5S Rotary viscometer


1: Specially used to measure very low viscosity samples
2: The sample size only needs 25ml
3: Cylindrical rotor can accurately calculate the shear rate for detailed analysis of products


1, the liquid below 15mpa.s selects No. 0 rotor, No. 0 rotor does not use protective frame, No. 0 rotor is mounted on the connecting screw (counter-clockwise rotation installed).

2. Place the fixed sleeve on the lower cylinder of the instrument and tighten it with the sleeve fixing screw.

3. Pour 20-25 ml of test liquid into the outer test tube (bottom).

4. Put the outer test tube into the fixed sleeve and tighten it with the test tube fixing screw. When tightening, pay attention to the taper end of the test tube fixing screw to screw into the triangular groove at the upper end of the outer test tube (can be in the side hole Observe whether the test tube is in the center of the hole. After the temperature of the liquid to be measured is controlled, the test can be performed.

5. When using a bottomless outer test tube, the method is basically the same as above (except 3), when the outer test tube and rotor are immersed in the groove of the outer test tube as the liquid surface line.
