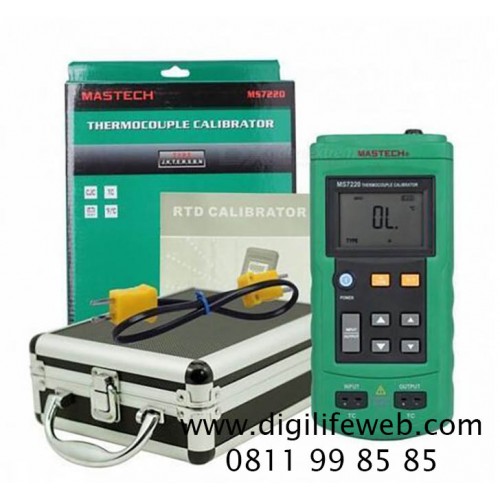

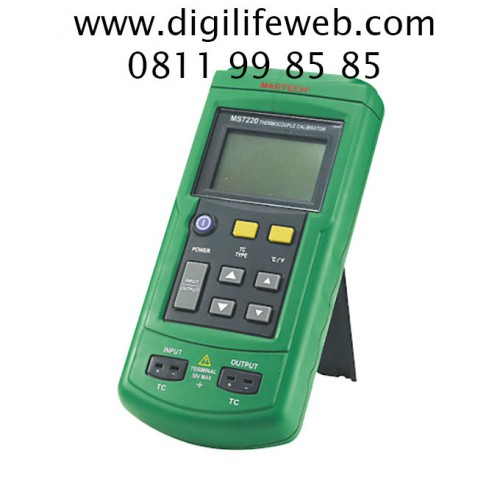

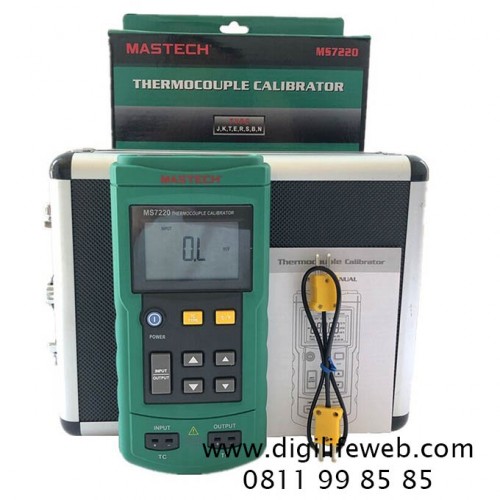

Thermocouple Calibrator Mastech MS7220

Thermocouple Calibrator Mastech MS7220
Thermocouple Calibrator Mastech MS7220 Thermocouple Calibrator Mastech MS7220
Brand: Mastech
Product Code: MS7220
Availability: In Stock
Price: Rp.4,600,000
Qty:
   - OR -

Original Mastech. Alat kalibrasi thermocouple

The Thermocouple Calibrator is a precise source and measurement tool for calibrating thermocouple instruments. The calibrator sources or measures in units of °C,°F, or mV, through a thermocouple minijack.


● Thermocouple standard NIST 175
● Thermocouple scales ITS-90
● Storage Temperature -40℃~60℃
● Operating Temperature -10℃~55℃
● Operating Altitude 3000 meters maximum
● Temperature coefficient : ±0.005% of range per ℃ for thetemperature range -10~18℃ and 28~55℃
● Humidity :  95% (10 ºC to 30 ºC) /  75% (30 ºC to 40 ºC) / 45% (40 ºC to 50 ºC) /  35% (50 ºC to 55 ºC)
● Vibration : Random 2G , 5Hz~500Hz
● Shock : 1 Meter drop test
● ℃/℉ Selection
● Low Battery Display



Thermocouple Type
Type Range Resolution
J -200℃~1200℃/-328℉~2192℉ 0.1℃/℉
K -200℃~1370℃/-328℉~2498℉ 0.1℃/℉
T -200℃~400℃/-328℉~752℉ 0.1℃/℉
E -200℃~950℃/-328℉~1742℉ 0.1℃/℉
R -20℃~17550℃/-4℉~3182℉ 1℃/℉
S -20℃~1750℃/-4℉~3182℉ 1℃/℉
B 600℃~1800℃/1112℉~3272℉ 1℃/℉
N -250℃~1300℃/-418℉~2372℉ 0.1℃/℉
Millivolt Measure and Source (MAX input voltage:30V)

Mode Range Resolution Accuracy
mV -10mV~75mV 0.01mV ±(0.02%+2)
Temperature Measure and Simulate (MAX input voltage:30V)
Type Resolution Error
Reference
junction Error
J,K,T,E,N 0.1℃/ ℉ ±(0.3℃+10uV) ±0.2℃
R,S,B 1℃/ ℉ ±(0.3℃+10uV) ±0.2℃
