Vibration Meter Smart Sensor AS63B

Vibration Meter Smart Sensor AS63B
Vibration Meter Smart Sensor AS63B Vibration Meter Smart Sensor AS63B Vibration Meter Smart Sensor AS63B
Brand: SmartSensor
Product Code: AS63B
Availability: In Stock
Price: Rp.3,200,000
Qty:
   - OR -

Tester Getaran dari Smart Sensor. Memiliki sertifikakt kalibrasi

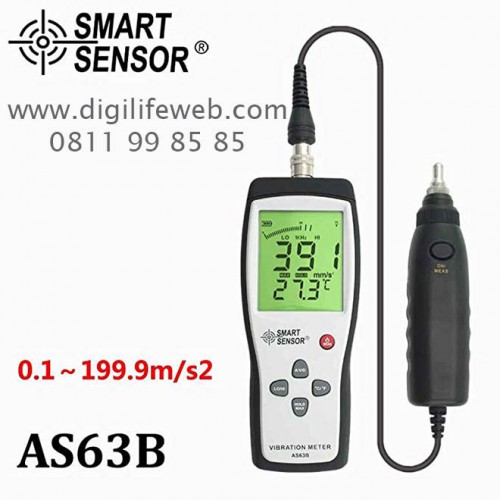

SMART SENSOR Vibration meter uses Piezoelectric Acceleration Transducer transfer the vibration signal in to electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration. It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.



HTB16c2qPVXXXXX7XXXXq6xXFXXXF (3)

Features:

1. LCD display measurement result and conditions directly
2. Measure acceleration(m/s2 peak), velocity ( mm/s ms(, and displacement (mm p-p)
3. Selective vibration characteristic
3. Uses hi-sense of vibration sensor, measuring accurately

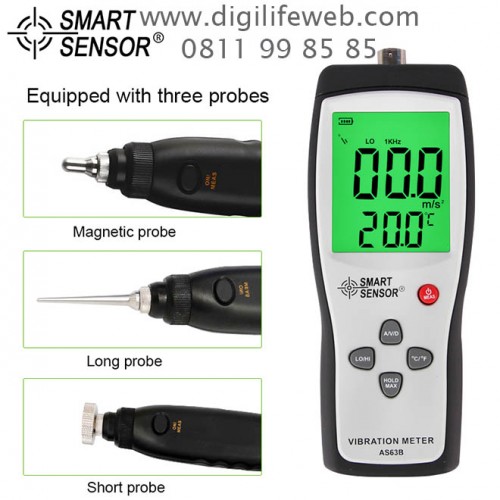

4. Equipped two probes ( S and L) to adapt the different measurement requirement
5. Provides a magnetic probe to fit the condition uneasy hold on by hand
6. Low battery indication
7. Auto turn off button
8. LCD back light function
9. Maximum value hold function
10. Temperature unit °C / °F selection

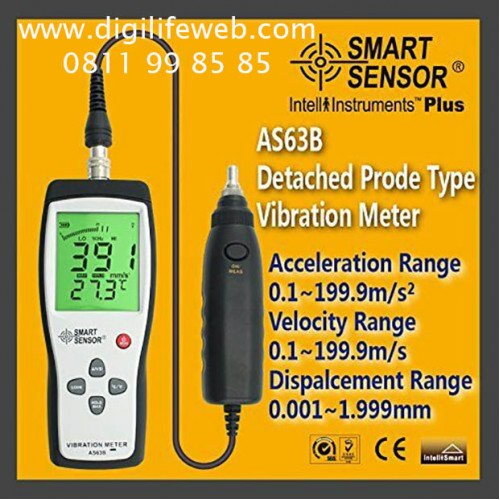

 Technical parameter  Technical specification
 Vibration pickup  Piezoelectric ceramic accelerometer (shear-type)
 Measurement range of acceleration  0.1~199.9m/s2 peak
 Measurement range of velocity  0.1~199.9mm/s rms
 Measurement range of displacement  0.001~1.999mm p-p (Velocity and displacement range is limited
 by acceleration199.9m/s2)
 Measurement accuracy  ±5%+2digits
 Measurement frequency range of acceleration  10Hz~1KHz (LO) 1KHz~15KHz (HI)
 Measurement frequency range of velocity  10Hz~1KHz (LO)
 Measurement frequency range of displacement  10Hz~1KHz (LO)
 Displays update cycle  1 seconds
 LCD display  3 1/2 digits display
 Single output  AC output 2 V peak (display full scale)
 Load impedance 10KΩor more earphones can be connected
 Power supply  9V battery (not include)
 Stand-by current  ≤15μA
 Operating current  ≤25mA
 Auto power-off function  Turns off automatically after 60 seconds
 LCD backlight function  7 seconds
 Operating temperature range  0~40℃
 Operating humidity range  30~90%RH
 Low battery indication  6.4V±0.2V
 Product Dimensions  70x30x150mm
 Product Weight  137g (not including battery)
 Temperature range  -10C~80C
 Temperature accuracy  ±2C

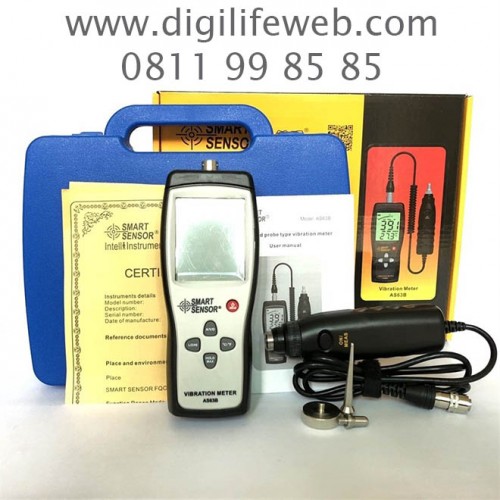

 Packing Contents   1pc Vibration meter
 1pc handle sub-unit
 1pc detector probe attachment "L"
 1pc detector probe attachment "S"
 1pc Magnetic probe
 1pc English user's manual
 1pc Long probe
 1pc Aluminum packing box
 Diagram and LCD display
AS63B-1

 1. Sub-unit handle connector ( with directionality)
 2. LCD display
 3. ON/OFF measure button, press for turn on. In measuring procedure,
 press for measuring, release for hold the reading
 4. Frequency character selection botton.( for acceleration)
 5. Maximum value locks button
 6. Temperature unit interchange button
 7. Measuring mode ( Acceleration / Velocity Displacement ) select button
 8. Sub-unit handle on/off measure button, press for turn,
 In measuring procedure, proess for measuring, release for hld the reading
 9. Detector head ( Selective between probe head attachments " S"/"L" and
 Magnetic proble.
AS63B-2

 1). Battery mark shows current residual battery power.
  Has following 5 levels:
   aeProduct.getSubject():battery is sufficient
   aeProduct.getSubject():battery is comparative sufficient
   aeProduct.getSubject():battery is nearly deficient
   aeProduct.getSubject():battery is nearly exhausted, need to have a replacement
    aeProduct.getSubject()battery is exhausted completely.
 2). Dynamic bar graph display measuring value
 3). Low frequency symbo.(10Hz~1Hz)
 4). Measurred value display
 5). Take the maximum value
 6). Temperature and maximum value display
 7). Temperature unit display, "C" for Celsius scale, " F" for the Fahrenheit scale
 8). Value hold
 9). When measuring acceleration, LCD will display acceleration uit " ,M/S2"
    When measuring velocity, LCD will display velocity unit " mm/s"
    When measuring displacement, LCD will display displacement unit " mm"
 10). 1KHz indication
 11) High frequency symbol. (1kHz ~ 15kHz)
 12). The symbol of the range of the measuring value.
 13). Backlight icon. the back light will be active for 7 seconds upon the button operations
