Vibration Meter Landtek VM-6370

Vibration Meter Landtek VM-6370
Vibration Meter Landtek VM-6370 Vibration Meter Landtek VM-6370 Vibration Meter Landtek VM-6370 Vibration Meter Landtek VM-6370 Vibration Meter Landtek VM-6370
Brand: Landtek
Product Code: VM6370
Availability: In Stock
Price: Rp.6,800,000
Qty:
   - OR -
- Vibration Meter dari pabrikan Landtek, memenuhi standard ISO2954
- Mengukur 3 parameter sekaligus: Displacement, Velocity, dan Acceleration
- Dapat koneksi ke komputer (kabel dan software opsional)


===
 Small size Vibration Tester, very easy to carry and light weight convenient to use and operate. It is used for measuring periodic motion, check the imbalance and deflecting of moving machinery. It is designed for measuring of various mechanical vibration. Build with rugged construction that allow long time usage.



Features:

Can display the parameters of displacement, Velocity, and Acceleration simultaneously.
In accordance with ISO 2954, used for periodic measurements, to detect out of balance, misalignment and other mechanical faults in rotating machines.

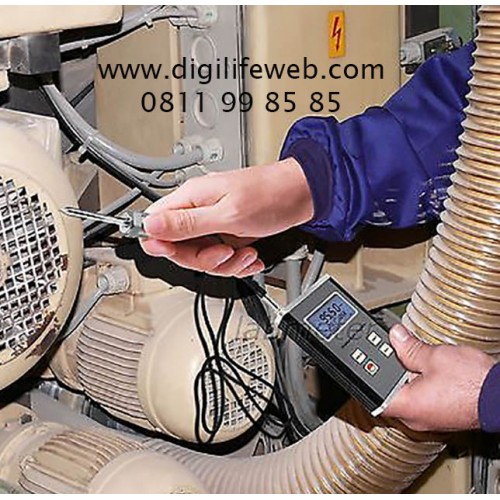

Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
Individual high quality accelerometer for accurate and repeatable measurements
Bearing condition monitoring function

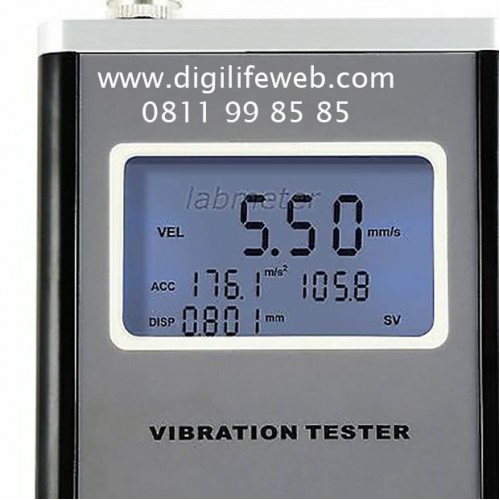

Digital LCD display
Lightweight and easy to use
Wide frequency range (10Hz~10kHz) in acceleration mode
Automatic power shut off to conserve power.
AC output socket for headphones and recording (Headphone is optional and not included in the set)
Can communicate with PC computer for statistics and printing by the optional cable and the software for RS232C interface (not included in the set)


Specifications:

Display: 4 digit LCD backlit
Sensor: Piezoelectric Transducer
Accuracy: 5% of reading + 2 digits
Measurement range:
Displacement: 0.001~4.000mm Equivalent Peak~Peak: 0.04~160.0 mil
Acceleration: 0.1~400.0m/s2 Equivalent Peak: 0.3~1312ft/s2; 0.0~40g
Velocity: 0.01~400.0mm/s True RMS: 0.004~16.00 inch/s
Frequency: 5Hz~1kHz

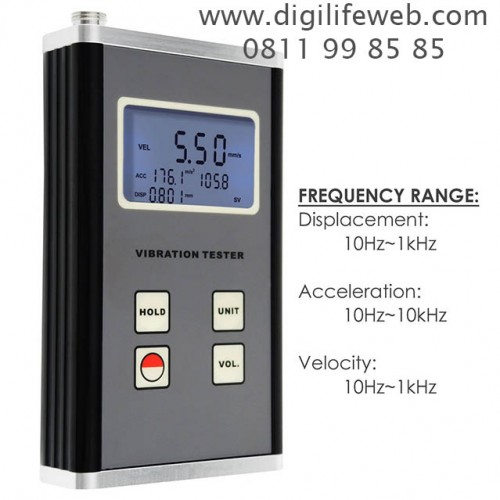

Frequency Range:
Displacement: 10Hz~1kHz
Acceleration: 10Hz~10kHz
Velocity: 10Hz~1kHz
Metric Imperial Conversion
Analogue Output: AC output 0~2.0V peak full scale (load resistance: above 10k)
With Max. value hold and low battery indication
PC interface: RS232C (cable and software not included in the set)
Power off: Manual off at any time or auto power off is enabled by user
Operating conditions:
Temperature: 0~50°C
Humidity: <90 %RH
Power Supply: 2 x 1.5V AA batteries
Size: 130 x 76 x 32mm
Weight: 340g (excluding battery)

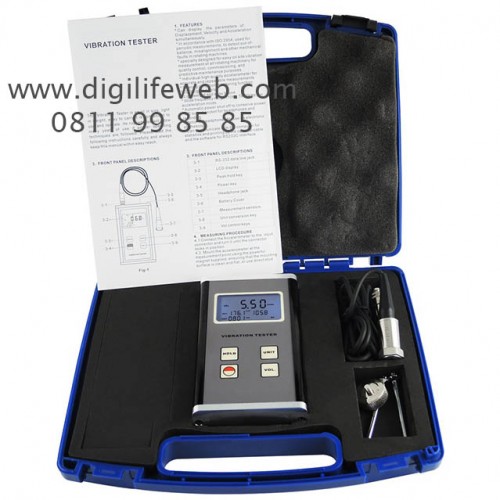

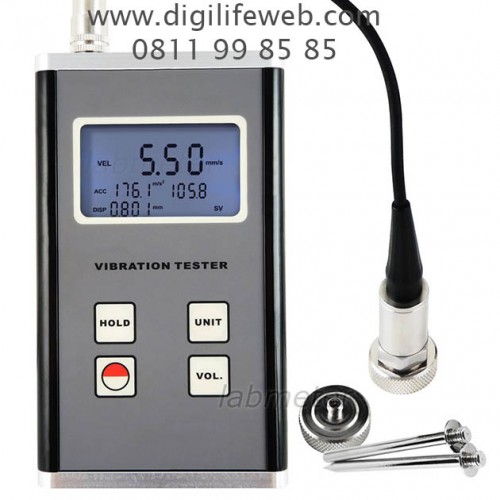

Set Includes:

1 x Digital Vibration Meter
1 x Magnetic Suction Seat
1 x Piezoelectric Transducer
1 x Probe (Cone)
1 x Probe (Spherical)
1 x English Operation Manual
Carrying Case
Standard Factory Packaging
