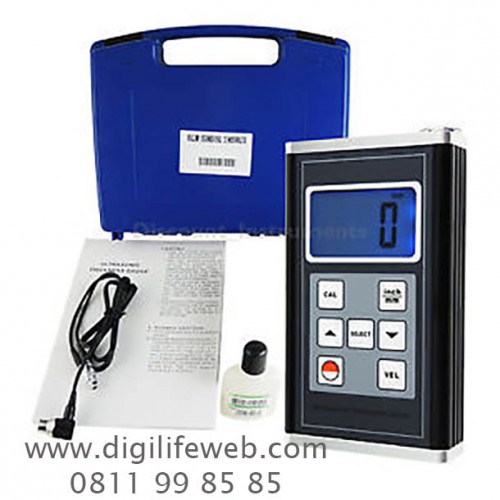

Ultrasonic Thickness Meter Landtek TM-8818

Ultrasonic Thickness Meter Landtek TM-8818
Ultrasonic Thickness Meter Landtek TM-8818 Ultrasonic Thickness Meter Landtek TM-8818 Ultrasonic Thickness Meter Landtek TM-8818
Brand: Landtek
Product Code: TM8818
Availability: In Stock
Price: Rp.7,200,000
Qty:
   - OR -

 Features

* Using the latest high performance and low power consumption microprocessor technology.
* Bidirectional measurement, for materials within measurement range, thickness is measurable with know velocity, Conversely velocity is measurable with know thickness.
* Automatic memory material code and sound velocity value, convenient to use.
* Coupling symbol indication.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.





Code Material
CD01 Steel
CD02 Cast Iron
CD03 Aluminum
CD04 Red Copper
CD05 Brass
CD06 Zinc
CD07 Quartz Glass
CD08 Polyethylene
CD09 PVC
CD10 Gray Cast Iron
CD11 Nodular Cast Iron
XXXX Sound Velocity





Housing Material Aluminum Alloy
Display Large Screen LCD

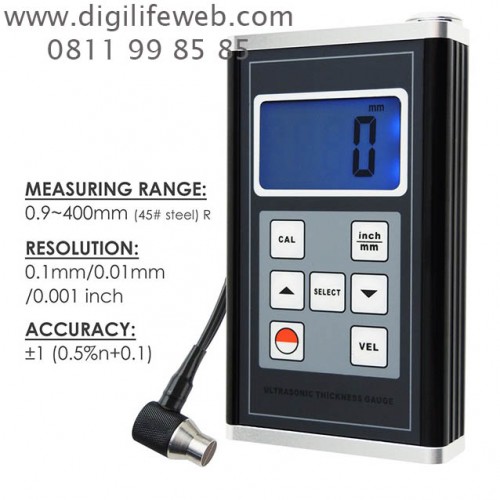

Measuring Range 0.75~400mm(45#steel,Depend on Probe)
Resolution 0.1mm/0.1mm/0.001 inch
Accuracy ±(0.5%n+0.05)
Sound Velocity 500~9,990m/s
Lower Limit of Pipes Φ15x2.0mmΦ20x3.0mm Determined By Transducer
Operating Conditions Temperature 0~40ºC
Humidity <85%RH
Power Supply 2x1.5V AA(UM-3)Battery
Dimensions 130x76x32 mm
Weight 340g(Not Including Batteries)
