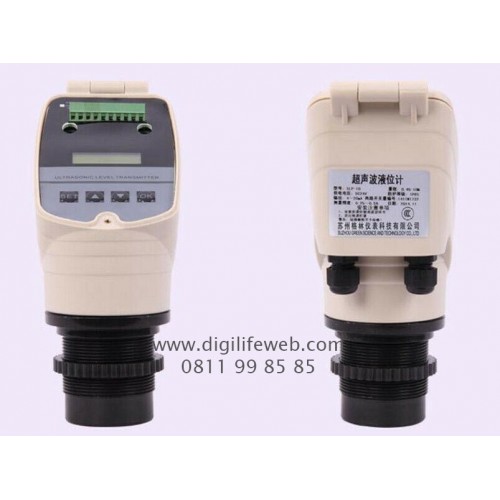

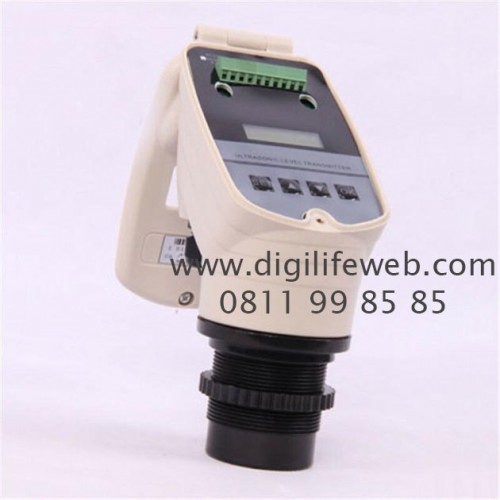

Ultrasonic Level Meter 0-10m 4-20mA 220v

Ultrasonic Level Meter 0-10m 4-20mA 220v
Ultrasonic Level Meter 0-10m 4-20mA 220v Ultrasonic Level Meter 0-10m 4-20mA 220v Ultrasonic Level Meter 0-10m 4-20mA 220v
Product Code: ULM010220V
Availability: In Stock
Price: Rp.2,200,000
Qty:
   - OR -
- Versi 0 sampai 10 meter, 220V AC


Product Description
This professional ultrasonic level transmitter provides level measurement of liquid(ranges: 0-10M).

It can provide real-time liquid level data displayed on software by connected to DCS system through 4-20mA signal.
This non-contact level gauge is accurate, reliable and stable to use at the field of chemistry, petroleum, medicine, industrial processing etc.

Provide more convenience for your work.


Feature
Stable Circuit
Adopt high-quality power module and imported electronic devices, stable working and safe on use.

Install Method
This level gauge is non-contact, no direct touch with liquid with long service time. Have many install ways to select.

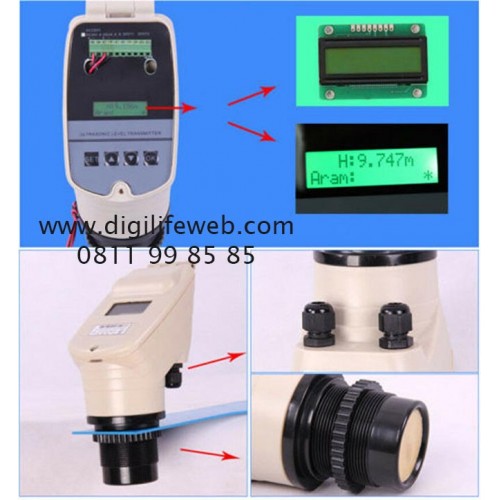

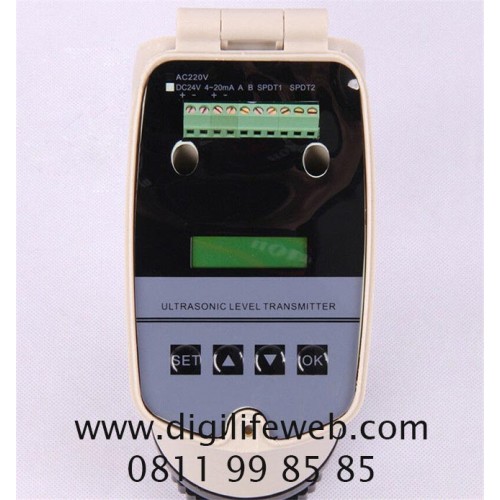

LCD Screen
Clear LCD screen, display liquid level, liquid level height & temperature, air height & temperature.

High Accuracy
Professional sensor, anti-corrosion and can counter most interference wave. 5% distance measurement accuracy, and 1mm ratio.

Output Way
Support 4-20mA/HART analog output, can transfer sensor mv signal into standard communication, so as to connect with PC port, digital instrument, PLC/DCS etc.

Wide Application
Perfect to use at the field of chemistry, petroleum, medicine, industrial processing etc. Give your work more convenience.

Specifications
Measure Range: 0-10m / 0-32.8ft
Fade Area: 0.5m / 19.7"
Accuracy: 5%
Ratio: 1mm
Pressure: Normal Atmospheric Pressure
Analog Output: 4-20mA/HART
Supply Voltage: AC 220V
Protection Level: IP65
Package Content
1 X Ultrasonic Level Transmitter
1 X User Manual
