Ultrasonic Flow Meter TUF2000M 50-700mm

Product Code: TUF2000M
Availability: In Stock

Price: Rp.3,500,000

Qty:

- OR -

Add to Wish List
Add to Compare

2 reviews | Write a review

Description Reviews (2) Related Products (19)

Ultrasonic Flow Meter TUF2000M Liquid Flow Meter TUF-2000B 50-700mm TM-1

Liquid Flow Meter adalah alat untuk mengukur laju aliran atau jumlah suatu fluida yang bergerak mengalir

Jenis cairan yang diukur oleh flow meter bisa berbagai macam cairan seperti air minum, air limbah, air lumpur, susu, cairan kimia, air gula, alkohol, oli dll

Ultrasonic Flow Meter TUF2000M mengukur laju aliran cairan dengan metode ultrasonik. Dilengkapi dengan transducer TM-1 50mm-700mm

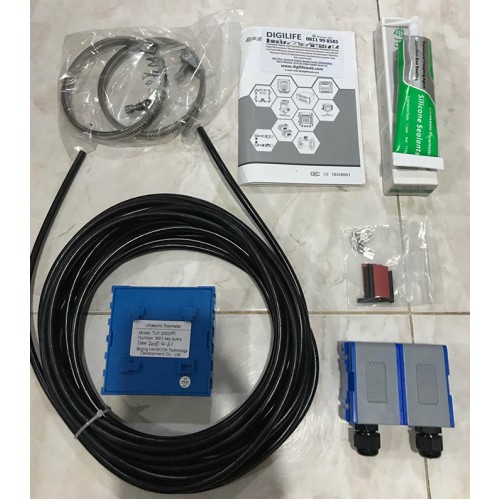

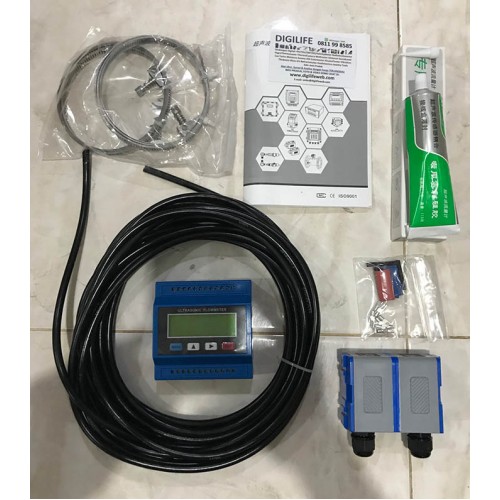

Catatan: untuk foto fisik riil mengenai apa yang didapat dalam paket, bisa dicek foto no 5 dan 6. Harap diperhatikan spesifikasi

====

Features:

High accuracy.

Linearity: better than 0.5%

Repeatability: better than 0.2%

Accuracy: better than +-1%.

Wide measuring range: Several types transducer for selection, pipe size from DN15mm to DN6000mm

Far transmission distance: Connecting module and secondary meter through RS-485 interface, transmission distance up to 1000m

Powerful Functions:

Current output: 4-20mA, one channel, can be used for flow/heat transmitter

OCT output: two channels, can be used for flow /heat switch

Current input: 4-20mA, three channels, can be used for data collector

Tri-wire resistance signal input (PT100): two channels, can be used for calorimeter

Wide Application:

Its unique features, particularly low cost, small size, high performance, local display, make it the ideal choice for industrial automation, processing control, flow meter networking, composing multi-channel, high accuracy flow meter.
