Portable Ultrasonic Flow Meter TUF2000H 50-700mm TM-1

Flow Meter adalah alat untuk mengukur laju aliran atau jumlah suatu fluida yang bergerak mengalir

Jenis cairan yang diukur oleh flow meter bisa berbagai macam cairan seperti air minum, air limbah, air lumpur, susu, cairan kimia, air gula, alkohol, oli dll

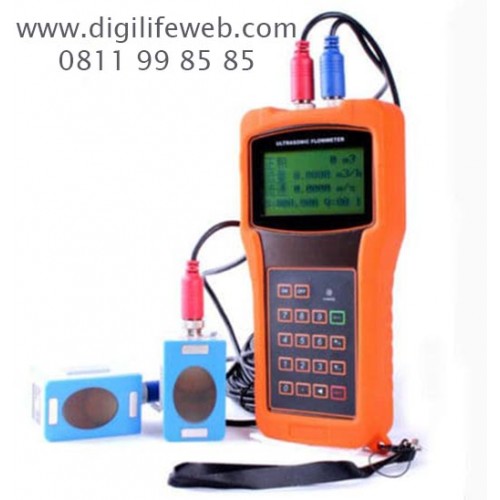

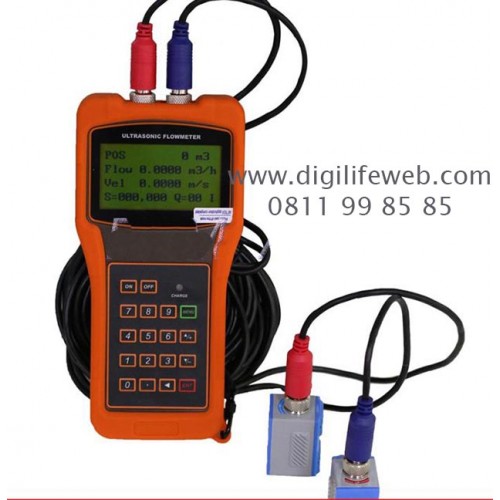

Ultrasonic Flow Meter TUF2000H mengukur laju aliran cairan dengan metode ultrasonik. Dilengkapi dengan transducer TM-1 untuk diameter pipa 50mm-700mm

Catatan: untuk foto fisik riil mengenai apa yang didapat dalam paket, bisa dicek foto no 5 dan 6. Harap diperhatikan spesifikasi





Items

Performance & Parameter





  Meter

Principle

Transit time ultrasonic flowmeter

Accuracy

± 1%

Display

4×16 character LCD with backlight

Signal Output

1 way OCT pulse output(Pulse width 6~1000ms, the default

value is 200ms)

Data Interface

Insulate RS232 serial interface, upgrade the flowmeter

software by computer



Pipe Installation

Condition

Pipe Material

Steel, Stainless Steel, Cast Iron, Copper, Cement pipe, PVC,

Aluminum, Glass Steel product, liner is allowed.

Pipe Diameter

15~6000mm (depends on transducer)

Straight Pipe

Transducer installation should be satisfied: upstream 10D,

downstream 5D, 30D from the pump.





Measuring

Medium

Type of Liquid

Single liquid can transmit sound wave, such as water, sewage,

oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc.

Temperature

-30~160°c

Turbidity

Less than 10000ppm and little bubble

Flowrate

0 ~ ±7m/s

Working

Environment

Temperature

main unit: -20~60°c; Transducer: -30~160°c

Humidity

main unit: 85%RH; Transducer protection level: IP67

Power Supply

3 built-in Ni-MH batteries 1.2V (for over 12 hours of operation).

Achieve to continuous measurement by connecting AC 90V - 260V adapter.

Power Consumption

1.5W

Housing Material

Inflaming retarding ABS

Main unit Weight

390g

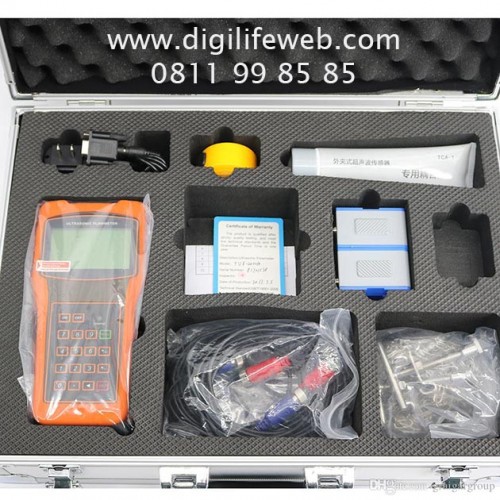

Standard Configurations:

1. Ultrasonic Flowmeter
2. TM-1 Transducer (DN 50-700 mm)
3. Signal cable
4. Data cable
5. Fixed steel chain
