Ultrasonic Flow Meter TUF-2000F2 50-700mm

Ultrasonic Flow Meter TUF-2000F2 50-700mm
Ultrasonic Flow Meter TUF-2000F2 50-700mm Ultrasonic Flow Meter TUF-2000F2 50-700mm
Product Code: TUF2000F2
Availability: In Stock
Price: Rp.8,600,000
Qty:
   - OR -

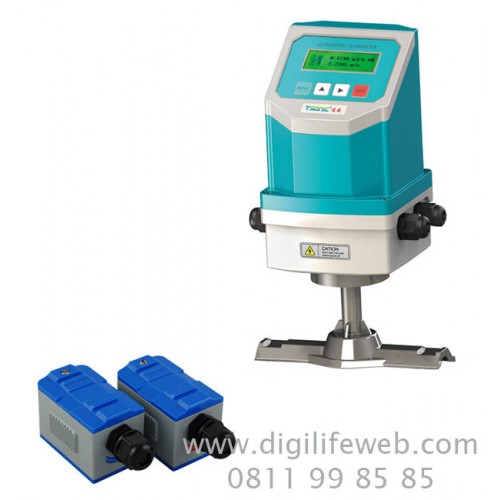

Ultrasonic Flow Meter TUF2000F2 dengan transducer 50-700mm TM-1

Liquid Flow Meter adalah alat untuk mengukur laju aliran atau jumlah suatu fluida yang bergerak mengalir

Jenis cairan yang diukur oleh flow meter bisa berbagai macam cairan seperti air minum, air limbah, air lumpur, susu, cairan kimia, air gula, alkohol, oli dll

Ultrasonic Flow Meter TUF2000F2 adalah model baru dari seri TUF. Memiliki Unit dan Transducer yang kedap air



=====
TUF-2000F2 is the new design for the TUF-2000 series industrial ultrasonic sensors. This has the same set up menus but has been made to suit the worst environment. Even when the cable glands are not sealed correctly, the electronics are protected. With set up by push buttons and a multiline display it is easy to get started.

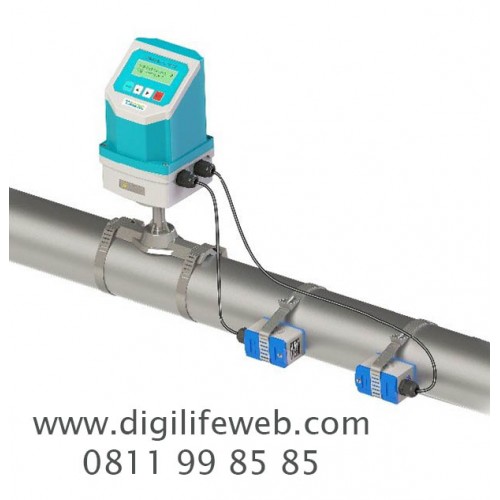

Matches all types of TTFM ultrasonic sensors – clamp on, insertion and in line
Flows from 0.1 to 7 m/sec
Totalisers included
Output – analog, pulse and RS485 with  accuracy +/-1%
Pt100 inouts direct for heat flow calculations
Size 132x150x85mm


Feature
High Accuracy  1%
Wide measuring range
Several types transducer for selection, pipe size from DN15mm to DN6000mm (This set includes with 50-700mm transducer)
High Reliability
Adopt low voltage, multi-pulse technology to improve accuracy, operation life and reliability.
Strong Anti-interference
Dual-balance signal differential receiver/driver circuit to avoid interference of converter, TV tower, high voltage line etc.
Powerful Recording Function

Automatically record the following data:
1. The totalizer data of the last 512 days/128 months/10 years
2. The time and corresponding flow rate of the last 6 4 times of power on and off events
3. The working status of the last 32 days

Support Heat Measurement
