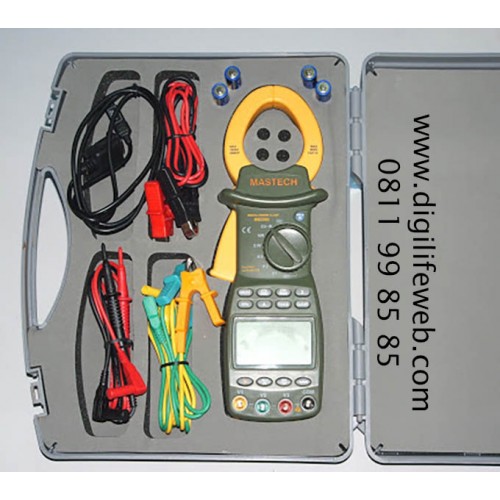

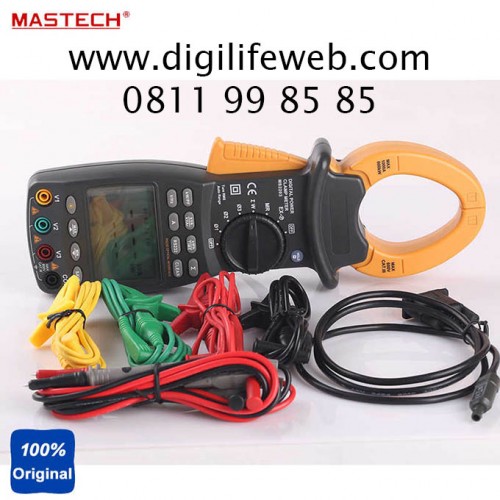

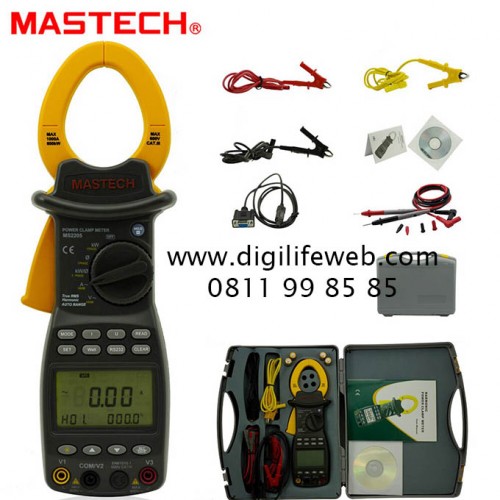

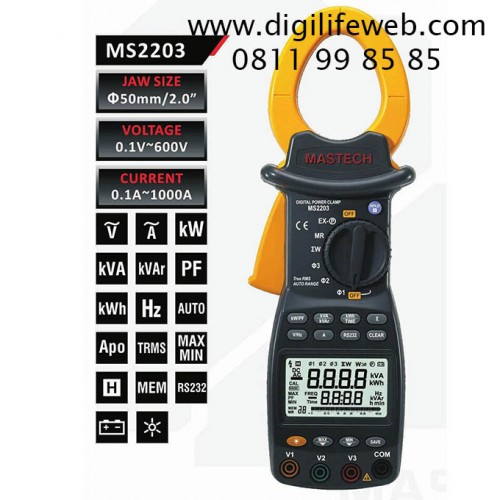

Three Phase Power Clamp Meter Mastech MS2203

Brand: Mastech
Product Code: MS2203
Availability: In Stock

Price: Rp.7,200,000

Qty:

- OR -

Feature

- Power measurement of 3-phase 3-wire, 3-phase 4-wire, single-phase mode

- V, A, W, VA, VAR, kWh, PF, Hz measurement

- Double display two parameters on each menu and store 28 groups of measurement parameter

- Measure total power value and five power parameters of each phase in 3-phase measurement mode respectively

- Autorange and TRMS display

- With PC RS232 interface and windows graphics software

- Display measurement time and select tested signal be power supply for the clamp at one time, the instrument can measurement for long time

Large LCD display, multifunctional button control

Specification

Max. Conductor Size: 50mm

AC Current (A): 40/100/400/1000A2%

AC Voltage (V): 100/300/600V1.2%

Active Power (kW): 4/10/40/100/600kW3.0%

Apparent Power (kVA): 4/10/40/100/600kVA3.0%

Power Factor (PF): 4/10/40/100/600kVA3.0%

Reactive Power (kVAR): 4/10/40/100/600kVAR4.0%

Active Energy (kWh): 10/100/1000/10000kWh3.0%

Frequency (Hz): 20Hz~ 1000Hz 0.5%

Display: 4 digits LCD 9999

Power Supply: 4 x 1.5V AA Batteries

Operating Temperature: 0C~ 40C

Dimension: 300mm x 103mm x 51mm

Weight: Approx. 640g

Certificate : RoHS
