Alat ukur kehalusan permukaan dengan 2 satuan: Ra dan Rz.
Ideal untuk berbagai keperluan industri, konstruksi, dan komersial. Memenuhi persyaratan ISO, DIN, ANSI dam JIS
===
Surface Roughness Tester is designed to measure roughness of material in 2 parameters (Ra, Rz) using the built-in Diamond pin probe.
Compatible with four standards: ISO, DIN, ANSI and JIS.
It has 4 wave filtering methods (RC, PC-RC,GAUSS & D-P).
In addition, said parameters can be downloaded directly to PC via the optional RS-232 CD software & cables.
This tester is widely used in production site to measure surface roughness of various machinery-processed parts and calculate corresponding parameters.

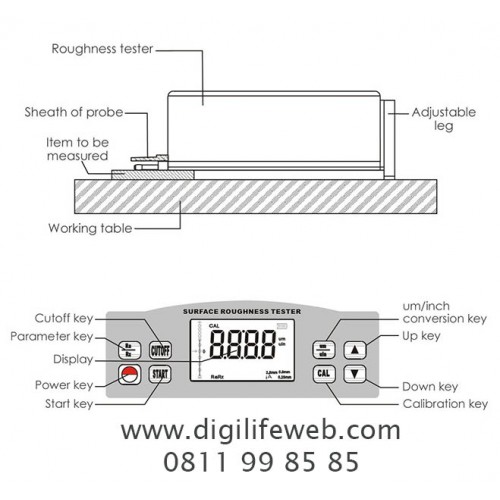

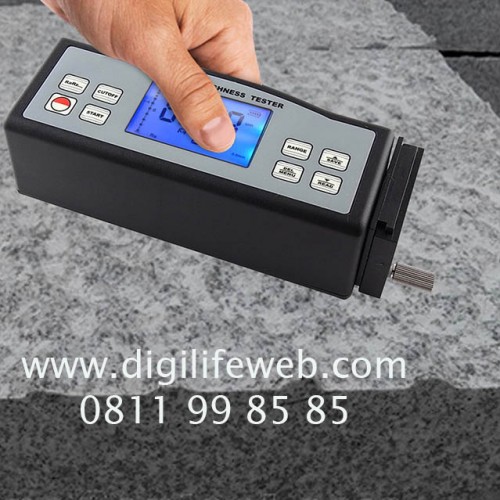

Easy measurement can be done by placing the sensor on the surface then uniformly slides along the surface by driving the mechanism inside the tester. The sensor measures the roughness of the surface via the sharp built-in probe.
This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates then outputs the results clearly on LCD.
Features:
Multiple parameter measurement: Ra, Rz
Highly sophisticated inductance sensor
Fourwave filtering methods : RC, PC-RC, GAUSS and D-P
Built-inlithium ion rechargeable battery and controlcircuit with high capacity
Selectable Metric (µm) and Imperial (µinch)
Exclusive DSP processes to output measurement results on LCD
Rechargeable battery via USB cable or Power Adapter
Specifications:
Multiple parameter measurement: Ra, Rz
Filtering methods: RC, PC-RC, GAUSS and D-P

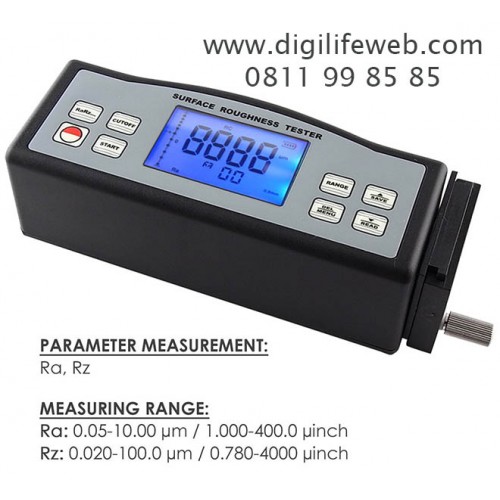

Measuring Range
Ra: 0.05-10.00 µm / 1.000-400.0 µinch
Rz: 0.020-100.0 µm / 0.780-4000 µinch
Accuracy:<=10%
Fluctuation of display value: <= 6%
Sensor
Test Principle: Inductance type
Material of Probe Pin: Diamond
Radius of Probe Pin: 10µm
Measurement Force of Probe: 16mN(1.6gf)
Vertical Radius of Guiding Head: 48mm
Probe Angle: 90°
Maximum driving stroke: 17.5mm/0.7inch
Cutoff Length: 0.25mm / 0.8mm / 2.5mm optional
Evaluation length: 1-5 cut-off optional
Driving speed
sampling length = 0.25mm Vt=0.135mm/s
sampling length = 0.8mm Vt=0.5mm/s
sampling length = 2.5mm Vt=1mm/s
returning Vt=1mm/s
Resolution:
0.001µm if reading <10µm
0.01µm if 10µm =reading <100µm
0.1µm if reading =100µm
Data output: communicate with PC through RS232C interface (optional, not included in set)
