Spectrum Analyzer adalah alat ukur untuk mengetahui jumlah distribusi energi dari suatu spektrum frekuensi yang dihasilkan oleh sinyal listrik. Dengan mengetahui distribusi energi sepanjang spektrum frekuensi, maka akan diperoleh data-data:

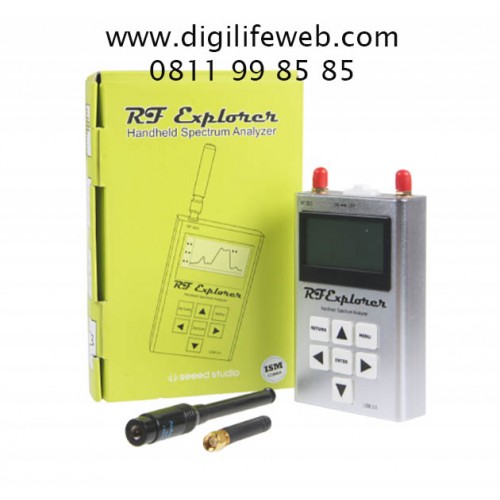

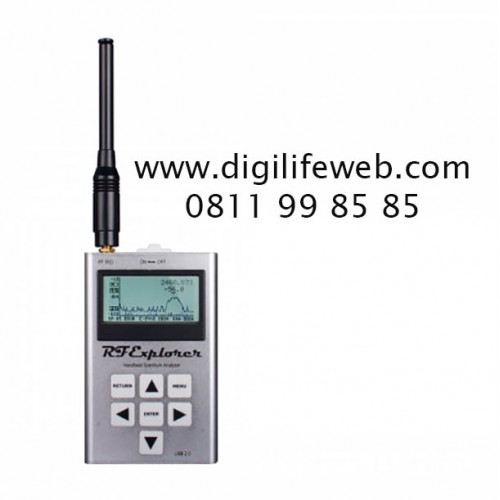

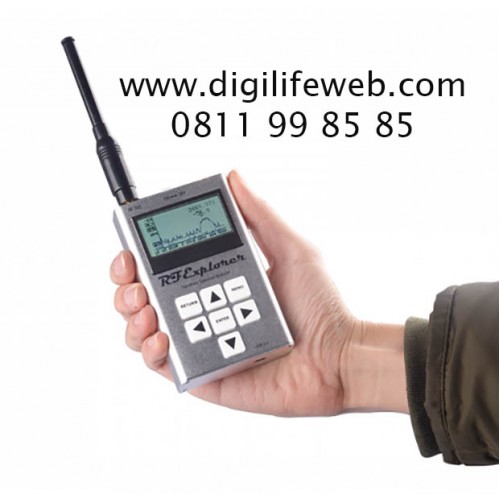

RF Explorer is a handheld digital spectrum analyzer, a very affordable tool for work in all ISM popular frequency bands. It is based on a highly integrated frequency synthesizer which offers high performance, compact size, low consumption and low cost.
It has been designed to be used equally well outdoor and indoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.
This model comes with a nice dual band telescopic 144/430MHz wideband telescopic antenna.
Features
-
Pocket size and light weight
-
Solid aluminum metal case
-
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
-
Lifetime free firmware upgrades available, open to community requested features
-
High capacity Lipo for 16hs+ of continuous run, rechargeable by USB
-
Windows PC client Open Source
-
Can be extended with internal Expansion Modules for additional band and functionality
-
Wide band coverage to all popular sub-1Ghz ISM bands, including 315MHz, 433MHz, 868MHzand • 915MHz, also including UHF TV, 70cm and 33cm HAM radio, GSM, etc. Any frequency from 240MHz to 960MHz is covered.
Note: this unit does not include RF Generator functionality, only Spectrum Analyzer functionality is available.
Tech Support
This product is designed by RF-Explorer,
-
For more info and to get started with your RF Explorer, visit the start page.
-
For questions and support, please visit https://support.rf-explorer.com.
If you'd like to buy or change the RF Explorer Battery, please click here.
Technical details
| Dimensions | 0mm x0mm x0mm |
| Weight | G.W 284g |
| Battery | Lithium Cells / Batteries contained in equipment UN3481 - PI967 |
| Frequency band | 240 - 960 MHz |
| Frequency span | 112KHz - 100MHz |
| Amplitude resolution | 0.5dBm |
| Dynamic range | -115dBm to 0dBm |
| Absolute Max input power | +5dBm |
| Average noise level (typical) | -110dBm |
| Frequency stability and accuracy (typical) | +-10ppm |
| Amplitude stability and accuracy (typical) | +-3dBm |
| Frequency resolution | 1Khz |
| Resolution bandwidth (RBW) | automatic 2.6Khz to 600Khz |
| Weight | 185g |
| Size | 113x70x25 mm |
Part List
| RF Explorer model WSUB1G | 1 |
| Nagoya NA-773 wideband telescopic antenna |
Spectrum Analyzer RF Explorer WSUB1G
