SMD Tester dari Mastech. Sangat efisien dan mudah dipakai.

Digunakan untuk memeriksa dan mengukur komponen yang masih tertanam dirangkaian tanpa harus mencabut terlebih dahulu

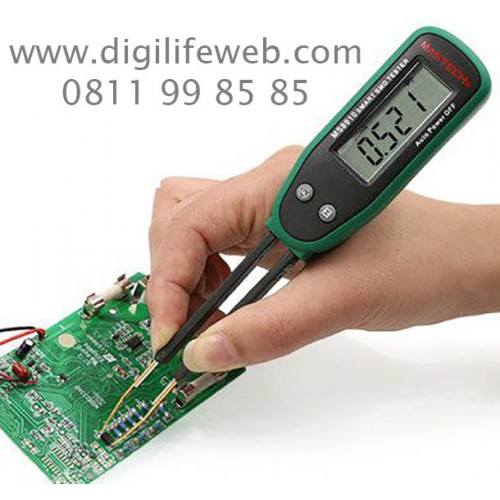

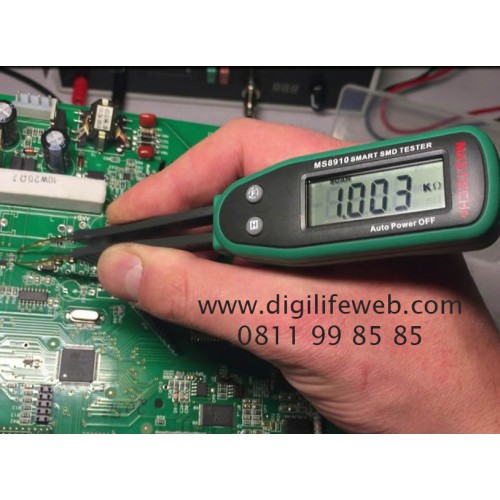

Hanya sentuhkan tiap ujung kapasitor dengan alat ini maka hasilnya akan langsung terlihat pada layar kecil

====

The Tester measures SMD components (Resistance & Capacitance) with high accuracy. Digital readout with large numbers. Handy and inexpensive tool helping in electronics production, quality control, service and prototyping.

The Tweezers can also be used to test conventional components.

Features:

It also can be operated manually. You can press the button "FUNC" to select one certain measuring mode.

Has the function of data hold.

Long press the "FUNC" key to turn on/ off this tester.

Automatic power off after it is idle for about 10 minutes. And on this occasion, it can be recovered to use by pressing any key.

Over load indication.

Low Battery Indicator

Gold-plated test pins, which can induce its contact resistance and prevent it from rusting.

Auto Scanning and Auto Ranging to Test Resistance, Capacitance, Continuity and Diode

LCD digital display

Practical one hand measurement allowing use of other hand to hold object containing SMD devices.

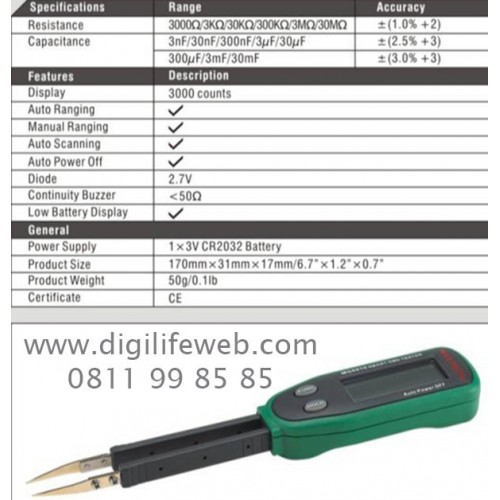

Specification:

3000 Counts LCD Display

Auto Scanning to Test Resistance : 300/3K/30K/3M/30M, Accuracy : (1% + 3d)

Capacitance : 3nF/30nF/300nF/3F/30F/300F, Accuracy : (2% + 3d)

Diode : 2.7V

Continuity Buzzer : 50

Auto / Manual Ranging

Data Hold

Auto Power Off

Low Battery Indicator

Power supplied by:1 * 3V CR2032 battery

Operating temperature:0 to 40 Celsius

Operating humidity:80%RH

Storage temperature:-10 to 50 Celsius

Storage humidity:70%

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

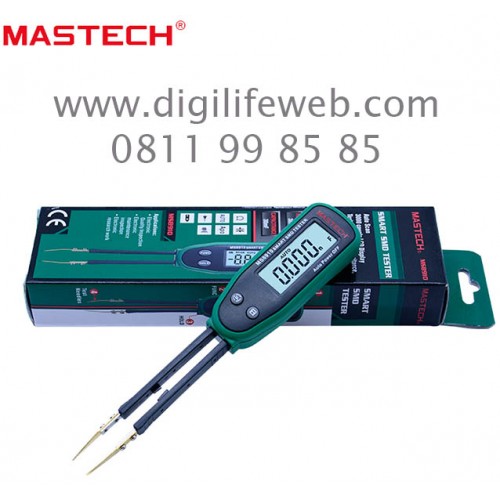

Smart SMD Tester Mastech MS-8910 Resistance Capacitance Diode

Brand: Mastech
Product Code: MS8910
Availability: In Stock

Rp350,000
