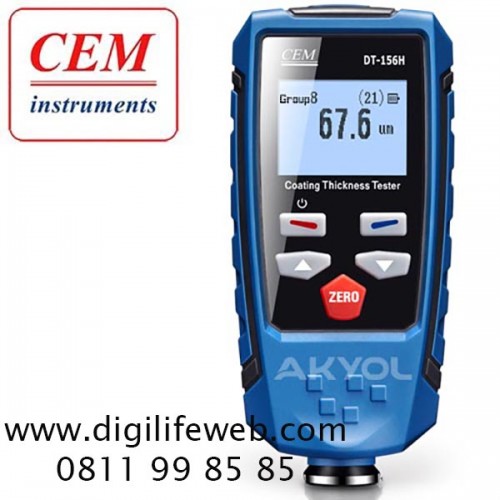

Paint Thickness Gauge CEM Instruments DT156H

Paint Thickness Gauge CEM Instruments DT156H
Paint Thickness Gauge CEM Instruments DT156H
Brand: CEM Instruments
Product Code: DT156H
Availability: In Stock
Price: Rp.3,500,000
Qty:
   - OR -
Paint Coating Gauge untuk mengukur ketebalan cat pada permukaan

Ideal untuk bengkel cat, mobil, kapal, lab manufaktur, dan maintenance tangki

Kami ada tipe DT-156 dan DT-156H. Untuk komparasi keduanya bisa dicek di tabel dibawah





===


Dual Technology Features Automatic Selection of Magnetic Induction or Eddy Current Measurement Techniques
Non-magnetic coatings (e.g. paint, zinc) on steel
Insulating coatings (e.g. paint) on no-ferrous metals
No-ferrous metals coatings on insulating substrates
Menu operation system
Two working modes: DIRECT and GROUP mode
One point calibration, two points calibration and basic calibration easily
Delete single readings and all group readings easily
Low battery, error indication
USB interface for PC software




Features

DT-156

DT-156H

Non-magnetic coatings (e.g. paint, zinc) on steel

*

*

Insulating coatings (e.g. paint) on no-ferrous metals

*

*

No-ferrous metals coatings on insulating substrates

*

*

Menu operation system

*

*

Two measuring modes: CONTINUE and SINGLE mode

*

Two working modes: DIRECT and GROUP mode

*

*

Statistic Display: AVG, MAX, MIN, NO., S.DEV

*

One point calibration, two points calibration and basic calibration easily

*

*

Memory for 400 readings (80 DIRECT and 320 GROUP readings)

*

Memory for 1500 readings ( 30 GROUP readings)

*

Delete single readings and all group readings easily

*

*

High alarm and Low alarm for all working modes

*

Low battery, error indication

*

*

USB interface for PC software

*

*

4 levels of battery indication

*

Error indication

*

Easily adapt to lighting conditions with 8 levels of backlight

*







Specifications

DT-156

DT-156H

Sensor probe

F

N

F

N

Working principle

magnetic induction

Eddy current principle

magnetic induction

Eddy current principle

Measuring range

0~1250um

0~1250um

0~1350um

0~1350um

Guaranteed tolerance (of reading)

(+/- 3%+1)um

(+/- 3%+1.5)um

(+/- 2.5%+2)um

(+/- 2.5%+2)um

Repeatability

(+/- 1%+1)um

(+/- 1%+1)um

(+/- 1%+1)um

(+/- 1%+1)um

Low range Precision

0.1um

0.1um

0.1um

0.1um

Minimum curvature radius

1.5mm

3mm

1.5mm

3mm

Diameter of Minimum area

7mm

5mm

7mm

5mm

Basic critical thickness

0.5mm

0.3mm

0.5mm

0.3mm
