Brand: CEM Instruments
Product Code: DT156
Availability: In Stock
Price: Rp.2,500,000
Qty:
   - OR -

Paint Coating Gauge untuk mengukur ketebalan cat pada permukaan

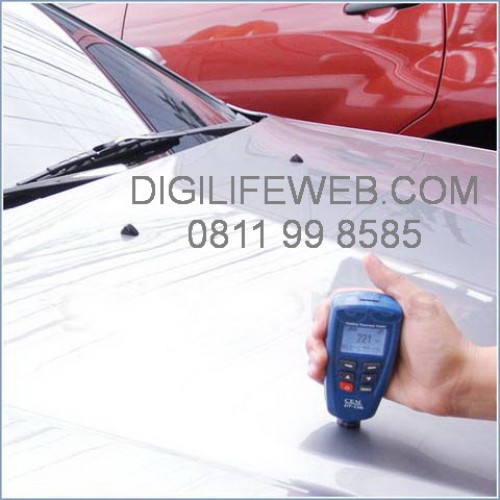

Ideal untuk bengkel cat, mobil, kapal, lab manufaktur, dan maintenance tangki

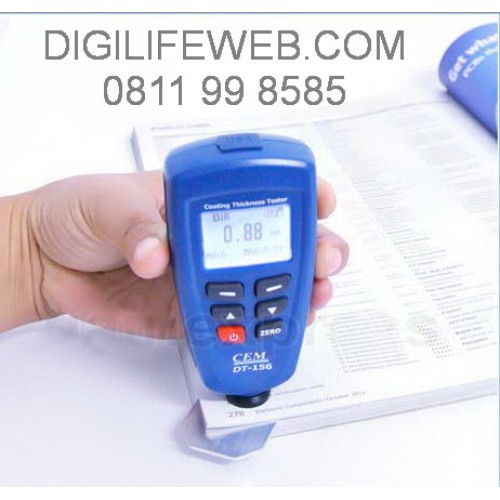

This compact Professional Gauge is designed for non-destructivefast and highly accurate coating thickness measurement.



The principal aplications lie in the field of corrosion protection. Ideal for paint shops & electroplaters, chemical, automobile, shipbuilding and aircraft industry



CEM Instrument DT-156 gauge are suitable for laboratory, workshop & outdoor use. It works either on magnetic induction principle and on eddy current principle, depends on probe used. DT-156 uses only 1 probe for both ferrous & non-ferrous metal substrates. Probe can be selected manually or automatically.



Stores 400 memory values and display 5 statistics ( AVG, MAX, MIN, S.DEV and Number of reading in work mode). It comes with software CD and USB cable for transferring collected data to computer for later analysis or data printing.





Features:

  • Non-magnetic coatings (e.g. paint, zinc) on steel
  • Insulating coatings (e.g. paint, anodizing coatings) on no-ferrous metals
  • No-ferrous metals coatings on insulating substrates

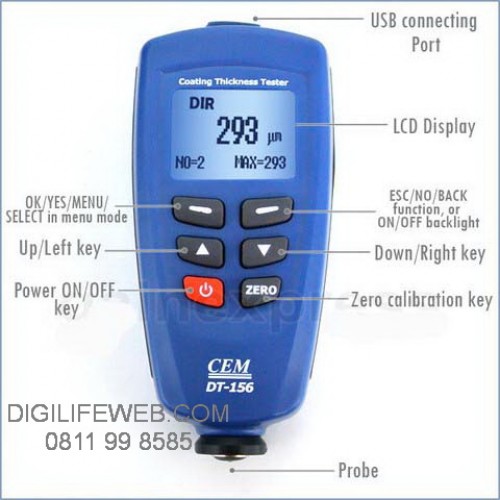

  • Easy MENU operation system

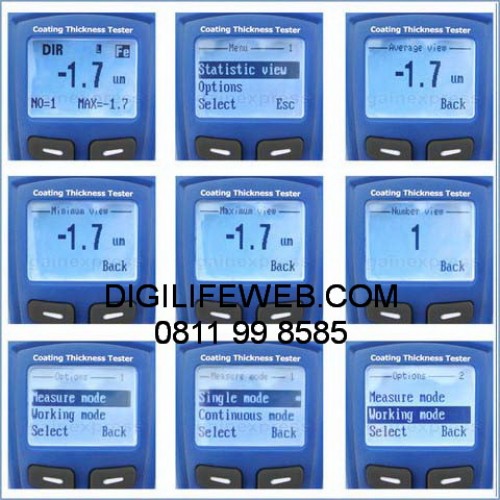

  • Statistics Display : AVG, MAX, MIN, S.DEV and Number of readings in work mode
  • Two measuring mode : CONTINUOUS and SINGLE mode
  • Two Operating/working mode :
    • Direct mode : recommended for simple, quick & occasional measurements. Though can't be saved but hold up to 80 current readings + 5 statistics values
    • GROUP mode : permits measurement & storage of readings in a memory. 4 memory groups, 80 saved readings for each group
  • Blue backlight display
  • One-point calibrating and two-point calibrating independently for each working mode
  • Zero calibration
  • 400 Memory readings (80 DIRECT and 320 GROUP readingS)
  • Delete functions
    • delete current data or last reading
    • delete all data and statistics of current work mode
    • delete group data including high & low alarm set value and 1 & 2 point calibrations
  • High alarm and Error indication
  • V-Groove on probe for small cylindrical parts
  • Disable Auto-Power-Off function via MENU setting
  • USB interface for PC software (compatible with windows 98/2000/xp/Vista/Win7)
  • Built with highest quality electronics
  • Conforms with the following industrial standards:
    • GB/T 4956-1985
    • GB/T 4957-1985
    • JB/T 8393-1996
    • JJG 889-95
    • JJG 818-93





Specifications:

  Sensor Probe   F NF
   Working Principle  Magnetic induction  Eddy Current principle
   Range  1250um 0~1250um
   0~49.2mils  0~49.21mils


 Guaranteed Tolerance

(of reading)

0 ~ 850 µm (±3% + 1µm); 850 ~ 1250µm (±5%)




0 ~ 33.46 mils (±3% + 0.039mils) 33.46~49.21mils (±5%)
   Accuracy

0.50um(0.1um)    50~850um(1um)   850~1250um(0.01mm)

  0~1.968mils(0.001mils)   1.968~33.46mils(0.01mils)
33.46~49.21mils(0.1mils)



Min.curvature radius

  1.5mm   3mm
   Diameter of Min.area   7mm   5mm
  Min.thickness of substrate     0.5mm 0.3mm
  Low range Precision 0.1µm                                0.1µm
    Working Temperature   0~40°C (32~104°F)
  Working Relative Humidity 20~90% RH
  Size  110 x 50 x 23mm
  Weight 100g

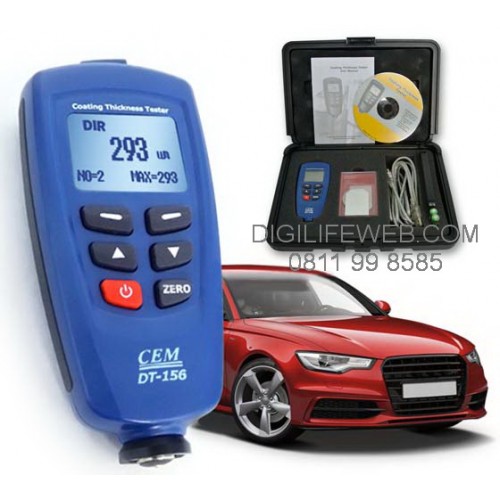

Set Includes:

  • 1 x Paint Coating Thickness Tester
  • 5 x Calibration Foil
  • 1 x Iron Substrate
  • 1 x Aluminum Substrate
  • 1 x Protective Carrying Case
  • 1 x USB cable
  • 1 x CD Software
  • 2 x 1.5V AAA Battery
  • Instruction Manual
