PC Based USB Digital Oscilloscope Intrustar ISDS205A

PC Based USB Digital Oscilloscope Intrustar ISDS205A
PC Based USB Digital Oscilloscope Intrustar ISDS205A PC Based USB Digital Oscilloscope Intrustar ISDS205A
Product Code: ISDS205A
Availability: In Stock
Price: Rp.1,200,000
Qty:
   - OR -
Intrustar ISDS205A adalah Osiloskop dual channel dengan harga terjangkau dan performa baik.

Bandwidth yang dirancang dengan baik dari 20M, tingkat sampling 48M, 2 saluran, dukungan bolak-balik X, Y dan XY pola bolak-balik dari dua-saluran virtual oscilloscope, analisa spektrum, perekam data. Perangkat berkomunikasi dengan PC melalui USB 2.0 berkecepatan tinggi.

Kompatibel dengan Windows Xp, Win7 (32), Win7 (64), Win8 (32), Win8 (64), Win10 (32), Win10 (64).

E-Manual bisa dilihat di
http://english.instrustar.com/upload/user%20guide/ISDS205%20User%20Guide.pdf

Intrustar ISDS205A dual-channel digital oscilloscope is a low-cost and high-performance product,it is portable and handhelded.

it is the best tool for everybody in Electronic channels, 20M bandwidth 48M sampling rate can meet your test requirement.

alternating support X-T and XY alternating pattern. Oscilloscope, spectrum analyzer and data recorder are in the oscilloscope.

Feature Description

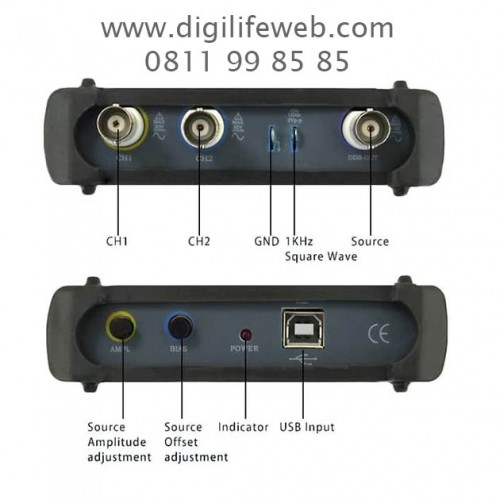

(1)Channels :2
(2)Signal source:Sine, Square(Duty circle variable),Triangle,Up Sawtooth,Down Sawtooth,1Hz ~ 20MHz(Sine), 1Hz ~ 2MHz(Others)
(3)Spectrum Analyzers:Channels 2,Bandwidth 20M,FFT measure:Harmonic(1-7)SNRSINADENOBTHDSFDR
(4)Impedance: 1M 25pF
(5)Coupling: AC/DC
(6)Vertical resolution: 8Bit
(7)Gain range: -6V ~ 6Vprobe X1 -60V ~ 60Vprobe X10
(8)Vertical accuracy: 3%
(9)Timebase range:1ns-20s
(10)Autoset Yes(10Hz to 20MHz)
(11)Trigger Mode: AutoNormal and Signal Trigger Type NoRising edgeFalling edge Rising edge or Falling edge
(12)Trigger Source: CH1, CH2
(13)Buffer Size :1MB/CH
(14)Bandwidth: 20MHz Sammple rate:Maxmium 48MS/s
(15)Vertical mode CH1, CH2, ADD, SUB, MUL

PC SYSTEM REQUIREMENTS
(1)WindowsXP Win7 Win8 Win10
(2)Pentium or higher processor
(3)USB2.0 High speed port
(4)512MB RAM
(5)1GB hard disk space

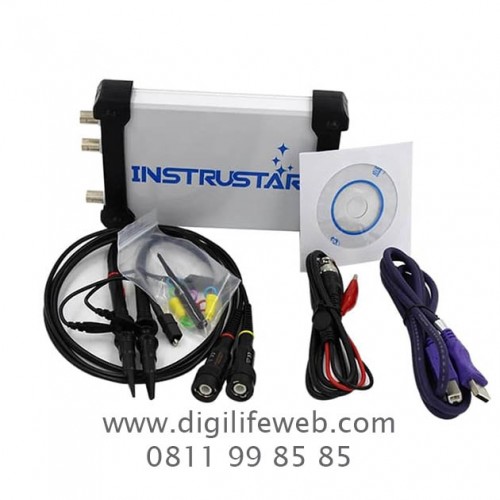

Paket termasuk:
1 x MDSO ISDS205A Osiloskop
2 x Oscilloscope Probe
1 x kabel USB
1 x BNC ke Kabel Klip
1 x CD (Manual dll)
