Alat ukur kekerasan dalam satuan Leeb dari pabrikan Landtek
This digital hardness tester measures the hardness of sample material in terms of Hardness Leeb (HL). Its very handy portable, but powerful and versatile hardness tester for different kind of metallic materials including steel and cast steel, cold work tool steel, stainless steel, grey cast iron, nodular cast iron, cast aluminum, brass, Bronze and copper alloys with high accuracy, suitable for use under tough working conditions. Test can be at any angles, even upside down. Moreover, a thermal mini-printer can be attached to the meter for a fast on-site printing of results.
It can be used on die cavity of molds, bearings and other mass produced parts on production line, failure analysis of pressure vessel, steam generator and other equipment, heavy work piece, installed machinery and permanently assembled parts, testing surface of a small hollow space, material identification in the warehouse of metallic materials, rapid testing in large range and multi-measuring areas for large-scale work piece.
Leeb Hardness Testing Principle.

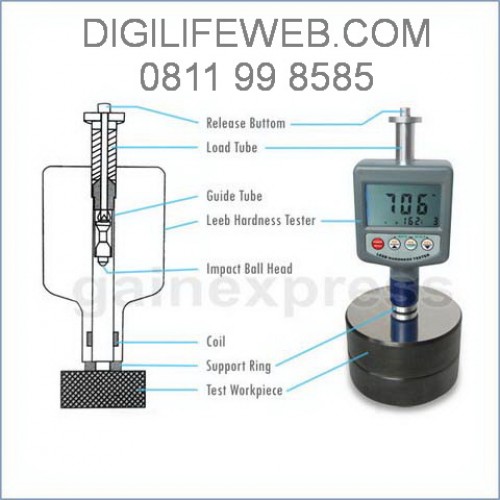

An impact body with a spherical test tip made of tungsten carbide is propelled against the sample surface by a spring force and then rebounds back. At a distance of 1mm from the sample surface, the impact and rebound velocity of the impact body are measured by the following method: A permanent magnet embedded in the impact body, when passing through the coil in its coil holder, induces in the coil an electric voltage proportional to the velocities of the magnet.
Palm size for narrow space
Test at any angle, even upside down

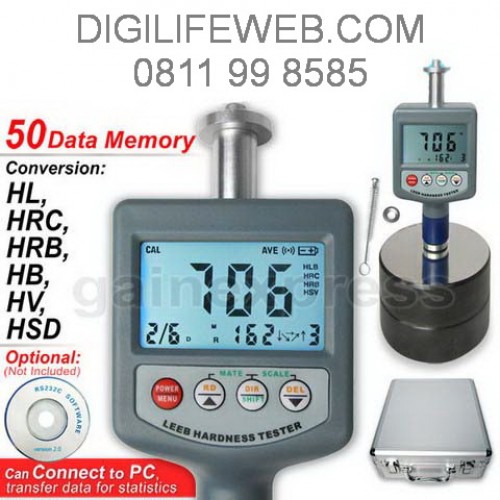

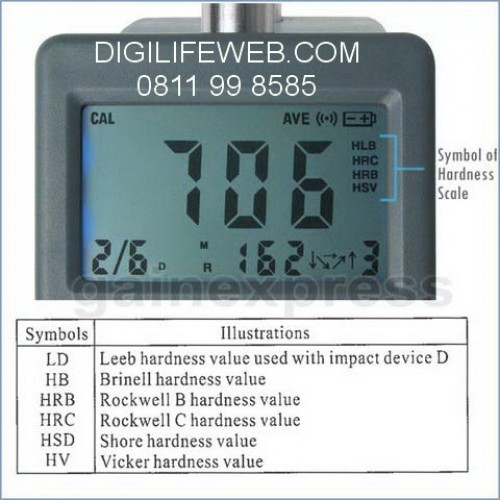

Direct display of hardness scales HRB, HRC, HV, HB, HS, HL
Large memory could store 50 groups including single measured value, impact direction, material and hardness scale etc.
User recalibration function allowed
Average Times Setting

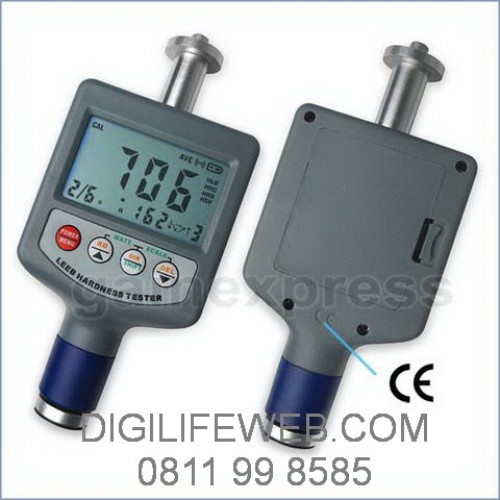

Durable metal case and hardness scales
D type Impact Device + D type Calibration block

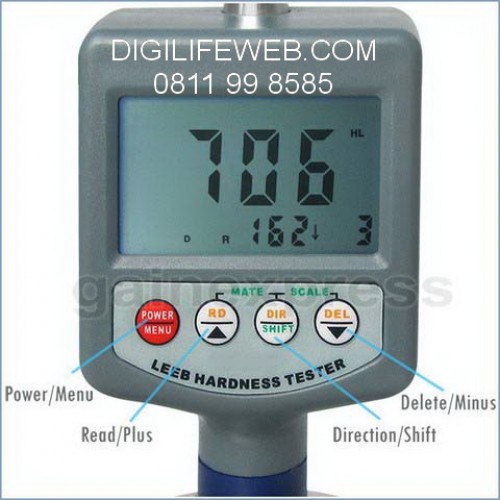

Large screen LCD, showing all functions and parameters. With backglight
Battery information showing the rest capacity of the battery
Optional Software to connect to PC for statistics and printing via RS232 port
Manual or Auto power off
Measuring range: 200-900L
Impact Directions: up, down, horizontal, slanting up, slanting down
Impact Device: D Will handle the majority of hardness testing applications. Weight: 75g

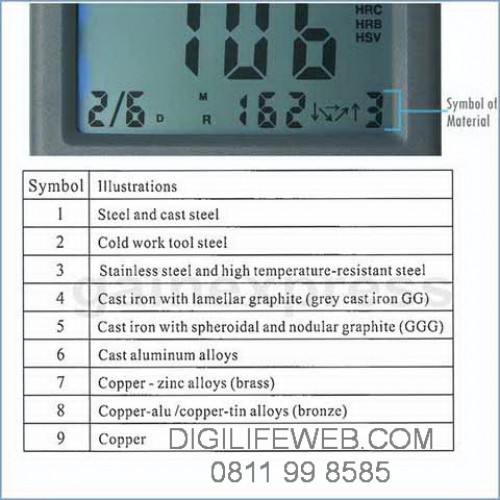

Measuring materials: 9 different common materials
Steel and cast steel
Cold work tool steel
Grey cast iron
Nodular cast iron
Cast aluminum alloys
Brass (copper-zinc alloys)
Bronze (copper-aluminum alloys/copper-tin alloys)
Wrought copper alloys
Display: 12.5mm LCD with back light
Accuracy: Display error ±0.8% at LD=900
With RS232C interface
Memory: 50 Data can be stored and re-readable

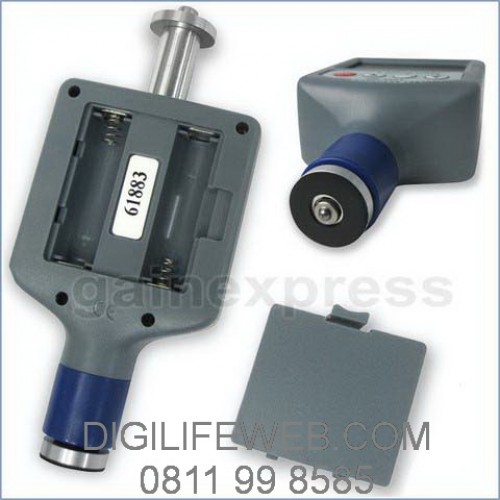

Work voltage: 3V (2 x 1.5V AAA size battery)
Working temperature: -10~50°C
Relative humidity: =90%
Dimension: 146 x 65 x 36mm
Main Unit: 140g (not including batteries)
Test Workpiece: 6.2lbs

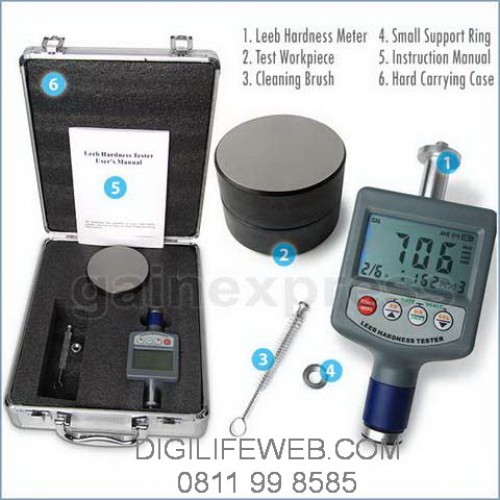

Whole Set with Hard Carrying Case: 8.5lbs (not including batteries)
