Humidity & Temperature Controller WSK303 220v

Humidity & Temperature Controller WSK303 220v
Humidity & Temperature Controller WSK303 220v Humidity & Temperature Controller WSK303 220v Humidity & Temperature Controller WSK303 220v
Product Code: WSK303
Availability: In Stock
Price: Rp.680,000
Qty:
   - OR -
Pengatur Kelembaban dan Suhu dalam 1 alat yang praktis, dengan layar besar, dan enak dilihat.

Fungsi:
- Sebagai Temperature Controller / Thermostat
- Sebagai Humidity Controller / Hygrostat


Supply voltage (default power switch power supply):
AC: switching power supply 85V~265V,50~60Hz
AC: transformer 110V, 220V, 380V,50~60Hz
DC:24V,36V,48V,110V,220V

Measurement accuracy:
Temperature: + 0.5 c
Humidity: +5%RH
Resolution: 14 Bit
Sampling time: 0.5 Sec

Range of measurement and control
Temperature:±40℃~100℃
Humidity: 0~100%RH

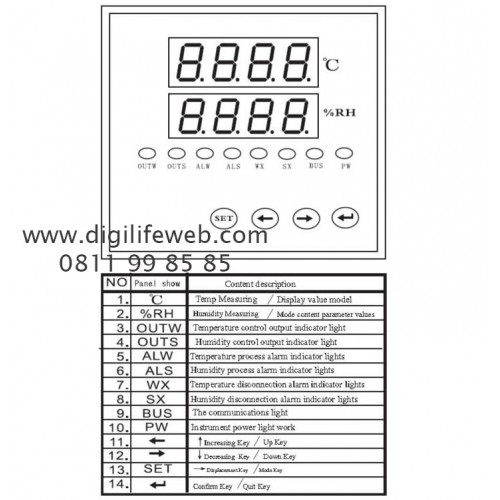

Display mode:LED Display
Measured value, set the value of digital display
Output status, alarm status LED light indication
Control mode:Two-position control (hysteresis can be set freely)

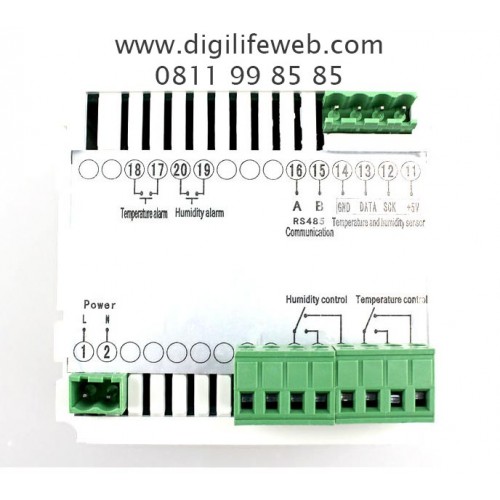

Control output

1. Relay output: contact capacity 250VAC 3A (resistive load)
2. Voltage pulse output: 0~12V (for solid state relay SSR)

Output contact
Durability: 1X10
Mechanical durability: 1X10
Installation methods:Flush mounting.

Others

1. insulation resistance: >50M ω (500VDC)
2. dielectric strength: 1500VAC/1 minutes
3. power consumption: <10VA
4. environment: 0~50℃, 60~85%RH, non-corrosive gases
5. weight: about 0.5Kg (power switch power supply)
6. disconnection alarm function
