Humidity & Temperature Controller Lilytech ZL-7801A

Humidity & Temperature Controller Lilytech ZL-7801A
Humidity & Temperature Controller Lilytech ZL-7801A Humidity & Temperature Controller Lilytech ZL-7801A Humidity & Temperature Controller Lilytech ZL-7801A
Product Code: ZL7801A
Availability: In Stock
Price: Rp.470,000
Qty:
   - OR -
Dual Controller Lilytech ZL-7801A dengan fungsi:
1. Hygrostat sebagai pengatur kelembaban
2. Thermostat sebagai pengatur suhu
3. Kontrol motor pemutar telur ke kiri dan kanan
4. Fungsi Alarm

Ideal digunakan di mesin tetas atau inkubator.
Dengan relay 30A yang besar, sangat handal dan aman.

1. Feature

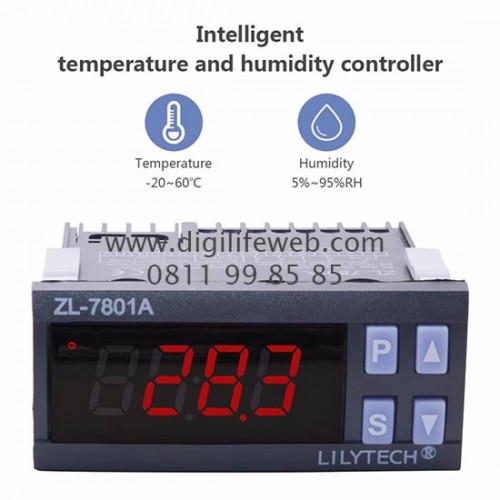

ZL7801A is an intelligent temperature and humidity controller. Compact design, IP65 level front panel protection, convenient operation and easy installation. Suitable for control of incubator, climate chamber, warehouse, and so on.

2. Main Function
heating control (R3)
Dehumidify control/ Humidify control (R2)
humidity load (R2) delay protection
Timer 1 control (R4 R5) (egg left-turning, egg right-turning)
Timer 2 control (R1) (Ventilation)
Temperature and humidity measurement and display
Temperature and humidity calibration
Sensor failure warning

3. Size Specification
Front panel dimension: 78* 34.5mm
Drilling template: 71* 29mm
Whole machines dimension: 78* 34.5* 71mm

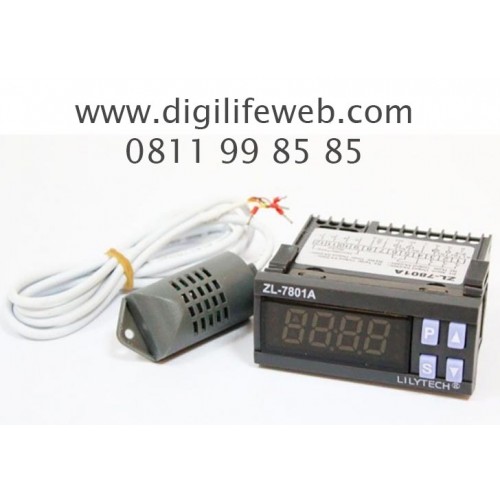

Length of sensor(s): 3m (including the sensor probe)

4. Technical Specification
Power supply: AC185 -245V 50HZ
Input signal: One humidity and temperature sensor, wire length 1 meter

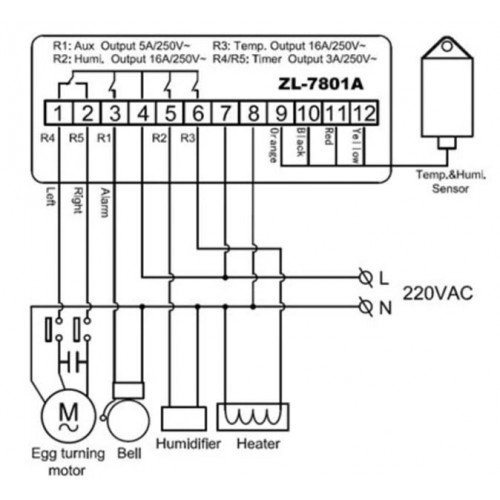

Output load: R1 R3 10A/250Vac, R2 16A/250Vac, R4 R5 3A/250Vac (Resistive load)
Setting range: Humidity 0-100RH, step 0.1%; temperature -20-120C, step 0.1C
Absolute accuracy: Temperature 1%; humidity 3%
Working environment: -20-45C, 10-90RH without dew
Protection level: IP65 (front panel)
Case: PC + ABS Fire Proo
Protection Degree: IP65 (front panel)
PCB Lacquered protection
