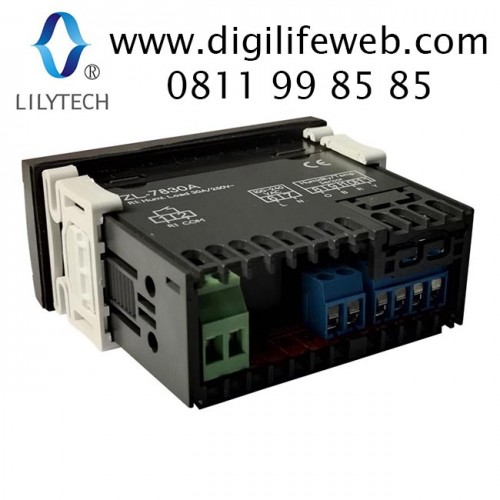

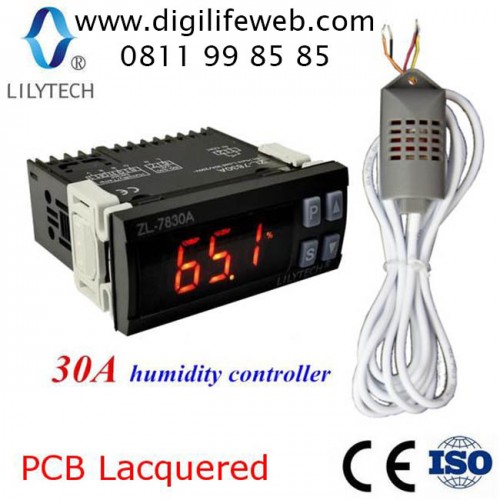

Humidity Controller Lilytech ZL7830A

Humidity Controller Lilytech ZL7830A
Humidity Controller Lilytech ZL7830A Humidity Controller Lilytech ZL7830A Humidity Controller Lilytech ZL7830A Humidity Controller Lilytech ZL7830A Humidity Controller Lilytech ZL7830A
Product Code: ZL7830A
Availability: In Stock
Price: Rp.400,000
Qty:
   - OR -
Pengatur kelembaban (Hygrostat) dari Lilytech yang dikenal dengan kualitas yang baik

Ideal digunakan di mesin tetas, inkubator, lab, dll.
Dengan relay 30A yang besar, dan bidang muka yang tahan air standar IP65. Mudah digunakan


Feature
ZL-7830 series are humidity controller with big output relay (30A), compact design with IP65 level front panel, convenient operation and easy installation, applied for humidify and dehumidify control.

Technical Specification
◇ Power supply: AC100~240V 50/60HZ
◇ Input signal: one humidity sensor (L=2000mm)
◇ Output load: R1 load 30A/250Vac, R2/R3 load 3A/250Vac (Resistive load)
◇ Set range: humidity 0-100RH with 0.1% resolution
◇ Absolute measurement accuracy: humidity 5%
◇ Working environment: -20~45℃, 10-90%RH without dewing
◇ Machine dimension: 78*34.5*71(mm, W*H*D)
◇ Drilling template: 71*29(mm, W*H)
◇ Case materials: PC+ABS (fireproof)
◇ Protection level: IP65 (front panel)


Isi paket:
1 x Humidity controller
1 x Sensor probe cable
1 X Manual
