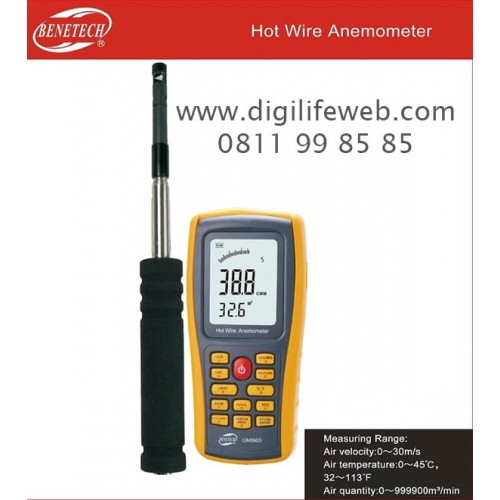

Hot Wire Anemometer Benetech GM8903

Hot Wire Anemometer Benetech GM8903
Hot Wire Anemometer Benetech GM8903 Hot Wire Anemometer Benetech GM8903 Hot Wire Anemometer Benetech GM8903
Brand: Benetech
Product Code: GM8903
Availability: In Stock
Price: Rp.2,100,000
Qty:
   - OR -
Hot Wire Anemometer Benetech tipe GM8903 adalah Anemometer dengan teknologi Thermal.

Anemometer umumnya menggunakan sensor berupa baling-baling yang mengubah kecepatan putaran baling-baling menjadi kecepatan angin. Pada Hot Wire Anemometer sensor menggunakan kawat kecil yang dialiri panas hingga suhunya diatas suhu lingkungan.
Disaat ada udara/ angin yang mengalir melalui kawat maka akan terjadi proses penurunan suhu pada kawat. Perubahan suhu ini diperhitungkan sebagai indikator perubahan kecepatan angin yang diuji.

Hot Wire Anemometer ini mengkonversi perubahan suhu menjadi kecepatan angin.

Ideal digunakan di berbagai industri untuk ventilasi, HVAC, penelitian lingkungan, Meteorology, Agricuture, Storage, Monitoring cuaca dll.

Hot Wire Anemometer GM8903

Features:
1.Measurement of wind velocity, temperature and flow
2.Unit conversion of wind velocity, temperature and flow
3.Measurement of maximum and minimum wind velocity
4.Measurement of 2/3 Vmax and average wind flow

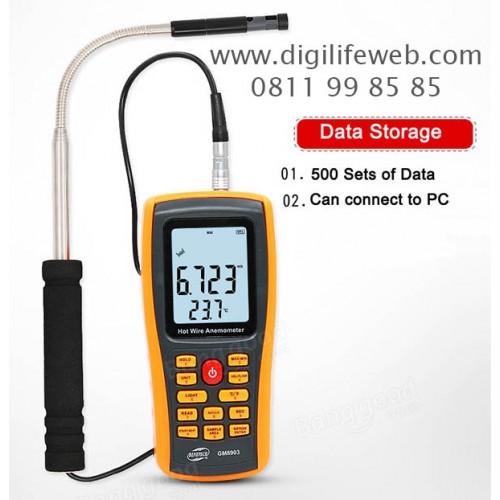

5.Data holding, storing and deleting function
6.Low battery indicating function
7.It turns off automatically within 10 minutes if there is no
further operation. it will not turn off automatically if there
is powered by USB source.
8.Memory of 350 records
9.Backlight
10.Connecting to PC with USB cable
11.Audio key pressing alert
12.Large LCD display


Spec
1.Power supply : AAA 1.5V Alkaline battery *4
2.Low battery indicating :4V±0.2V
3.Stand by current 0uA
4.Operating Current ≤60mA
5.Battery use life :20H (Continuous Use )
6.Dimensions: Meter :77x36x164mm
Probe 30.5x30.5x305MM
30.5x30.5x1000MM(Elongated)
7.Net Weight : 330G (Not Included Battery)


8.Wind Velocity Range :



Unit Wind Velocity Resolution Lowest Point of start value Accouracy
m/s 0.0-30.0 0.001 0.3 ±3%±0.1
Ft/min 0.0-5860 0.01/0.1/1 60 ±3%±20
Knots 0.0-55.0 0.01/0.01 0.6 ±3%±0.2
Km/h 0.0-90.0 0.001 1.0 ±3%±0.4
Mph 0.0-65 0.001/0.01 0.7 ±3%±0.2



9. Wind flow range :

CMM:0-999900m³ /min
CFM:0-999900 ft³ /min

Unit Range Resolution Area
CFM(FT³ /MIN) 0-999900 0.001-100 0.001-9999
CMM(M³ /MIN) 0-999900 0.001-100 0.001-9999



10.Air Temperature Range :
Wind Temperature



Unit Scale Resolution Accuracy
0.0-45.0 0.1 ±1.0℃
32.0-113.0 0.1 ±1.8℉
