Hardness Tester Smart Sensor AR936

Hardness Tester Smart Sensor AR936
Hardness Tester Smart Sensor AR936 Hardness Tester Smart Sensor AR936 Hardness Tester Smart Sensor AR936 Hardness Tester Smart Sensor AR936
Brand: SmartSensor
Product Code: AR936
Availability: In Stock
Price: Rp.8,500,000
Qty:
   - OR -
Alat ukur kekerasan Besi, Stainless Steel, Aluminum, berbagai jenis metal dalam satuan:
(170~960) HLD
(17~68) HRC
(19~651) HB
(80~976) HV
(30~100) HS
(59~85) HRA
(13~100) HRB

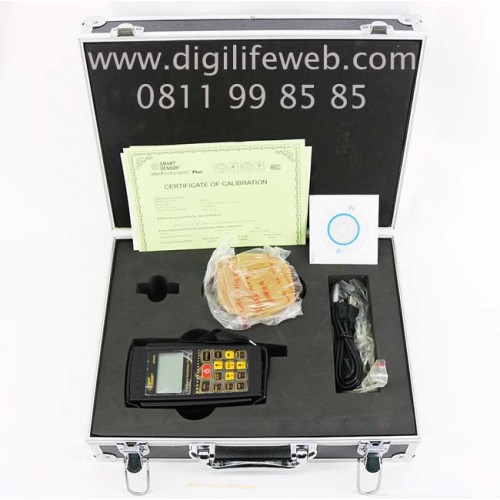

Mendapatkan sertifikat kalibrasi, dan test block


---
Introduction

Mainly used to check hardness in confined spaces, on large & heavy components, permanently installed parts with low test expenditure.

The machine has built in conversion facility for given material to convert ‘D’ value to Vickers (HV), Rockwell (HRB, HRC), Brinell (HB).

Display indicates selected material & scale combination & hardness value. Data memory can upto 500 group.

This unit is versatile all-in one solution for portable hardness testing. The Leeb hardness principle is based on the dynamic (rebound) method and is best suited for on-site testing of heavy work piece, the installed machinery and permanently assembled parts, die cavity of molds, bearings and other parts, failure analysis of pressure vessel, steam generator and other equipment, testing surface of a small hollow space, material identification in the warehouse of metallic materials, rapid testing in large range and multi-measuring areas for large-scale work piece, etc.







SPECIFICATIONS
 Measuring rang

(170~960)HLD,(17~68)HRC,(19~651)HB,(80~976)HV

(30~100)HS,(59~85)HRA,(13~100)HRB

 Accuracy ±10HLD
 Test Direction 360°(plumb down,down,horizontal,inclined up, plumb up)
 Hardness Unit

HL、HB、HRC、HRA 、HV、HS

 Display

 Matrix LCD (128*64dot)

 Data Store Max 500 group
 Chinese&English Version  Selection
 USB transmission USB
 Auto power off
 Backlight
 Operation Environment 0~60℃
 Storage temperature -20~70℃
 PACKING INFORMATION
 Power AA*4battery
Product Net Weight 360g
Product Size 150*80*38cm
Packing Aluminium box

 Standard Carton Size 42.5*18*36.5cm
 Standard Carton Gross  Weight 4.5KG
