Alat ukur lapisan atau cat diatas metal

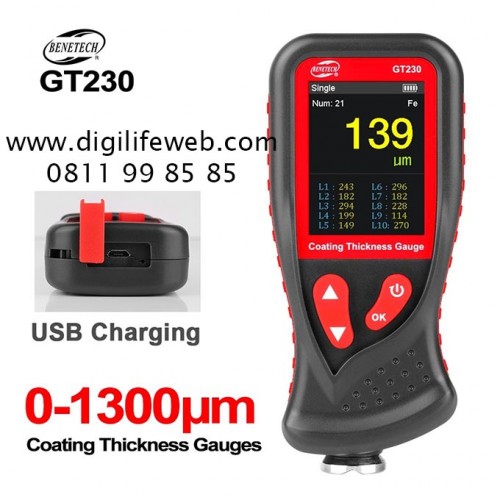

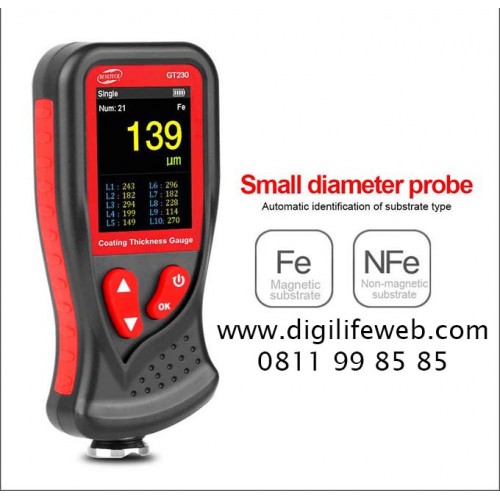

Film Coating Thickness Gauge original dari Benetech
This Coating Thickness Gauge features:
1. Menu operation and color-screen HD display.
2. Thickness measurement of non-magnetic coating on magnetic metal substrate surface and non-metallic coating on non-magnetic metal substrate.
3. Two measurement methods: single measurement, continuous measurement.
4. Basic calibration and Zero-point calibration available.
5. Metric/imperial unit and storage function.
6. Screen rotation, charge protection, multi-interface displays, screen brightness selection.
7. Automatic shutdown.
Measurement range: 0 ~ 1300um/51mil
Resolution: ( 0.1μm(<100μm),1μm( ≥100μm))/0.1mil
Measurement error: ≤150μm ±5μm
Minimum diameter of magnetic metal substrate: 12mm
Minimum thickness of magnetic metal substrate: 0.5mm
Minimum radius of curvature for magnetic convex substrate: 2mm
Minimum radius of curvature for magnetic concave substrate: 11mm
Minimum diameter of non-magnetic metal substrate: 50mm
Minimum thickness of non-magnetic metal substrate: 0.5mm
Working voltage: DC 3.7V (Lithium battery capacity 1000mAh)
Weight: 102.4g(including battery)
