Durometer Shore C - Hardness Tester

Durometer Shore C - Hardness Tester
Durometer Shore C - Hardness Tester Durometer Shore C - Hardness Tester Durometer Shore C - Hardness Tester
Product Code: SHOREC
Availability: In Stock
Price: Rp.530,000
Qty:
   - OR -

Alat ukur kekerasan skala shore. Biasa disebut Durometer Hardness Tester

Ada 3 jenis :
Shore A untuk mengukur material yang tidak keras seperti karet, kulit dan wax.
Shore C untuk mengukur foam, sponge
Shore D untuk mengukur material yang lebih keras seperti ebonite, resin keras, akrilik, kaca, piringan cetak dan fiber

NOTE: Produk di halaman ini untuk Shore C. Bila yang anda perlukan Shore A, klik disini

(Video demo pemakaian ada dibawah)




Durometer Hardness Test
A Durometer is an instrument that is commonly used for measuring the indentation hardness of rubbers/elastomers and soft plastics such as polyolefin, fluoropolymer, and vinyl. A Durometer simply uses a calibrated spring to apply a specific pressure to an indenter foot. The indenter foot can be either cone or sphere shaped. An indicating device measures the depth of indentation. Durometers are available in a variety of models and the most popular testers are the Model A used for measuring softer materials and the Model D for harder materials



Features:

  • With clear LCD display for easy to read
  • Compact pocket size to take along
  • Wide measuring range with high resolution
  • 0.5HC resolution
  • Easy to store with plastic box
  • Button Battery is included
  • Perfect for Foam, Sponge

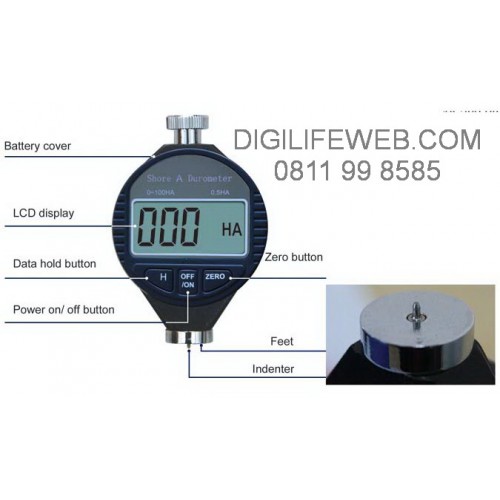

Main Functions:

  • On/off switch: power on and off
  • H key: hold the reading
  • Zero function: reset the readouts

Specification:

  • Range: 0-100HC
  • Resolution: 0.5HC
  • Accuracy: no more than ±1%
  • Power:1.5 cell
  • Working temperature: 0- 40 ℃



Package Content:

  • 1x Digital shore C hardness durometer
  • 1x Plastic box with foam
  • 1x Button cell battery (installed)
