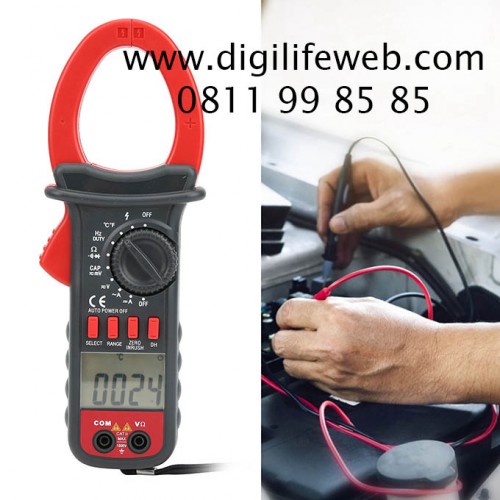

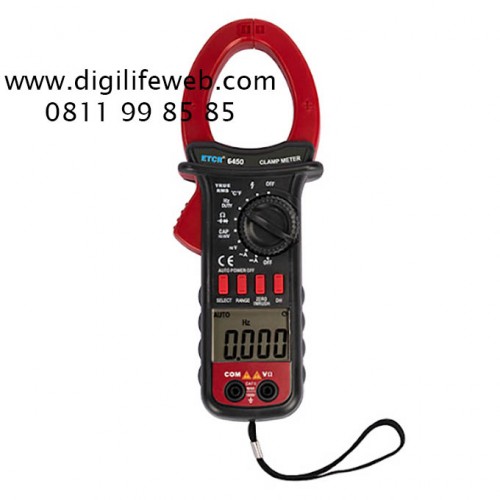

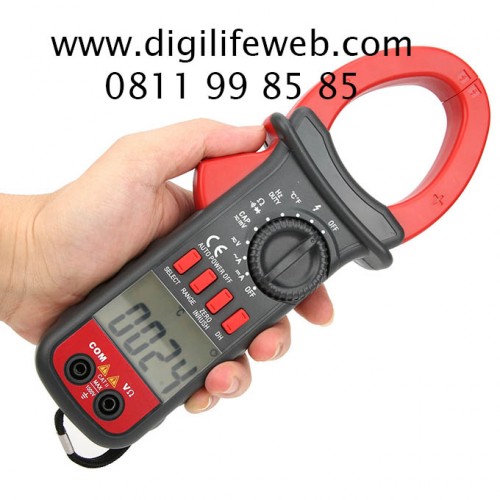

Clamp Multimeter ETCR6450

Product Code: ETCR6450
Availability: In Stock

Price: Rp.680,000

Qty:

- OR -

Add to Wish List
Add to Compare

8 reviews | Write a review

Description Reviews (8) Related Products (9)

Measurement of DC current and voltage、AC current & voltage true RMS, resistance, surge, capacitance, frequency, on-off test, temperature, diode forward voltage drop and others parameters.

Clamp Size：Ф52mm

DC Voltage：0mV~1000V

AC Voltage：0mV-700V

DC Current：0A~1000A

AC Current： 0A-1000A

Resistance： 0Ω~40MΩ

Capacitance：0nF~10mF

Frequency： 0Hz~40MHz

Basic function
Function	Description
DC Voltage	400m/4/40/400/1000V ±（0.8%+2）
AC Voltage	400m/4/40/400/700V ±（1.2%+5）
DC Current	10A/400A/1000A ±（2%+5）
AC Current	40A/400A/1000A ±（2%+5）
Resistance	400/4k/40k/400k/4M/40MΩ ±（1%+3）
Capacitance	10n/100n/1u/10u/100uF/1000uF/10mF ±（3%+5）
Frequency	10/100/1k/10k/100k/1M/10m/40MHz ±（0.5%+3）
Temperature	-50°C～1000°C ±（1%+5）
Special function
Function	Description
Auto Range	√
ManualRange	√
AC ConversionType	True RMS
InputProtection	√
Auto Shutdown	about 10 minutes, can be setand cancel auto shutdown function
Diode Test	Can measure the LED work voltage below 3V
Duty Ratio Measurement	√
Voltage Frequency Measurement	√
NCV（Live line）Measurement	√
Short Circuit Buzzer	√
LowVoltageIndicator	√
Input Impedance	about 10 MΩ
Data Hold	√
Surge Signal Measurement	√
CT Size	Ф52mm
General features
Function	Description
Power Supply	6F22 9VX1
Meter Weight	360g（with battery）
Meter Dimension	249X89X38mm

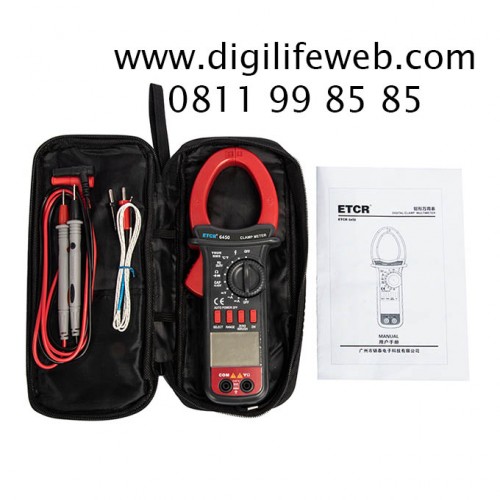

Accessories	Tester:1pcs ; Pen probe：1set；Temperature sensor：1set；Meter Bag:1pcs
