Medical Thermal Camera UNI-T UTi165K with PC Software
Price: Rp.14,800,000
Kamera Termal Medis dari UNITREND untuk mengetahui suhu tubuh
Bisa koneksi ke komputer dengan software yang disediakan
Untuk software dan manual bisa direview di:
https://www.uni-trend.com/html/product/NewProducts/UTi165/UTi165K.html
==

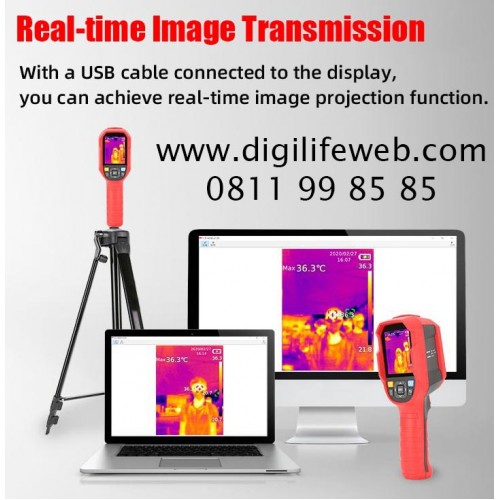

REAL-TIME IMAGE PROJECTION - High precision thermal imager can connect to computer to display the measurement image in real time.Real-time observation results.
HIGH TEMPERATURE ALARM - Customizable setting of high temperature alarm value to 37.3 ℃. For temperatures greater than 37.3 ℃, lights will be displayed, and the screen will alert on high temperatures.
FAST TEMPERATURE DETECT - Fast temperature detector for quick temperature screening.Thermal imaging temperature range: 30℃~45℃. Accuracy: ±0.5℃. Support SD card, USB and other import methods, with powerful image processing capabilities.

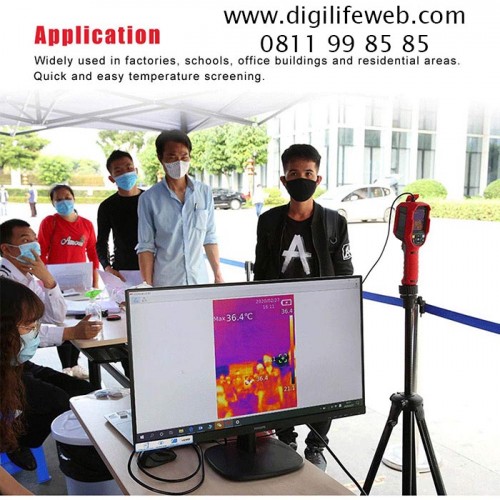

WIDELY APPLICATION THERMOMETER - Widely used in factories, schools, office buildings and residential areas. Quick and easy temperature detect.
PC SOFT ANALYSIS - Support SD card, USB and other import methods, with powerful image processing capabilities.
UTi165K Thermal Imager
1. 2.8" TFT screen
2. Infrared resolution: 160×120
3. Frame frequency: 9Hz
4. Range of temperature measurement: 30℃~45℃
5. Accuracy: ±0.5℃ (1m)
6. Photographed function and SD card storage
7. PC software analysis
8. Point temperature measurement
9. Real-time image transmission
10. Visible light (640×480)
11. Type-C USB interface for lithium battery charging

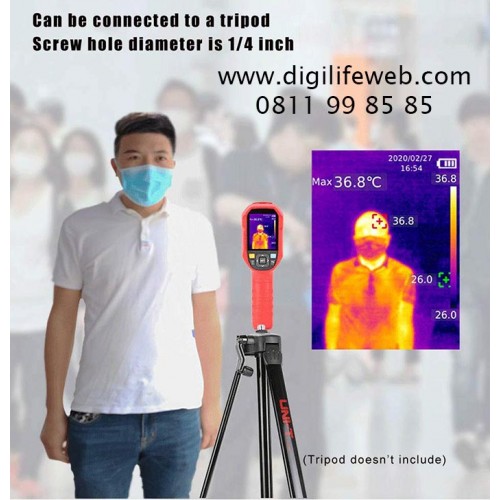

12. 1/4" tripod mounting hole
Specifications
Model UTi165K
Sensor Uncooled focal plane
Temperature range 30˚C~45˚C
Resolution 0.1˚C
Accuracy ±0.5˚C @1m
Minimum measuring distance 15cm
Temperature measurement response time ≤500ms (95% of reading)
Pixel of thermal imagery 19200 (160×120)
Pixel dimemsions 12μm

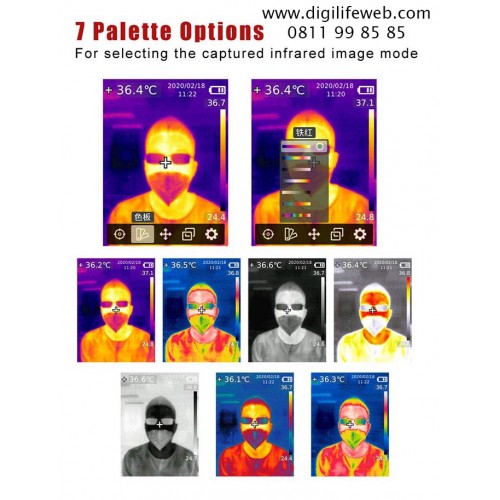

Palettes Iron red, rainbow, white, black, red, lava, high-contrast rainbow
Bandwidth of infraed spectroscopy 8~14μm
Field of view (FOV) 56°(H) × 42°(V)
Instantaneous field of view (IFOV) 6mrad
Thermal imaging sensitivity ＜50mk
Frame rate ＜9Hz
Temperature display Center temperature measurement and high temperature tracking (default)
Image format BMP
Buttons 10 buttons: POWER button, Camera button, Return button, Navigation buttons, SET button, SET button, Browsing button, LED lighting button
Image modes Thermal imagery, digital camera (visible light), fushion
Temperature measuring point Besides central point, 3 temperature measuring points can be added
Visible light √
Resolution of visible light 640×480
Display resolution 320×240
Mixed setting 0% (total visible light), 25%, 50%, 75%, 100% (total thermal imagery)
PC analysis software (PC) √
Real-time image transmission √ (PC software image projection)
Data communication Type-C USB
Auto power off Selectable (5min, 10min, 30min), 30min auto power off (default)
Service time ≧6 hours
Charging time ≦5 hours
Charging voltage/current 5V/2A
Image storage Micro SD card
General Characteristics
Power A single Li-ion 3.7V/5000mAh 26650 battery
Display 2.8" TFT LCD
Product color Red & grey
Product size 236mm x 75.5mm x 86mm
Standard accessories Manual, Type-C USB cable, 16GB TF card
Standard carton gross weight 2.2kg
